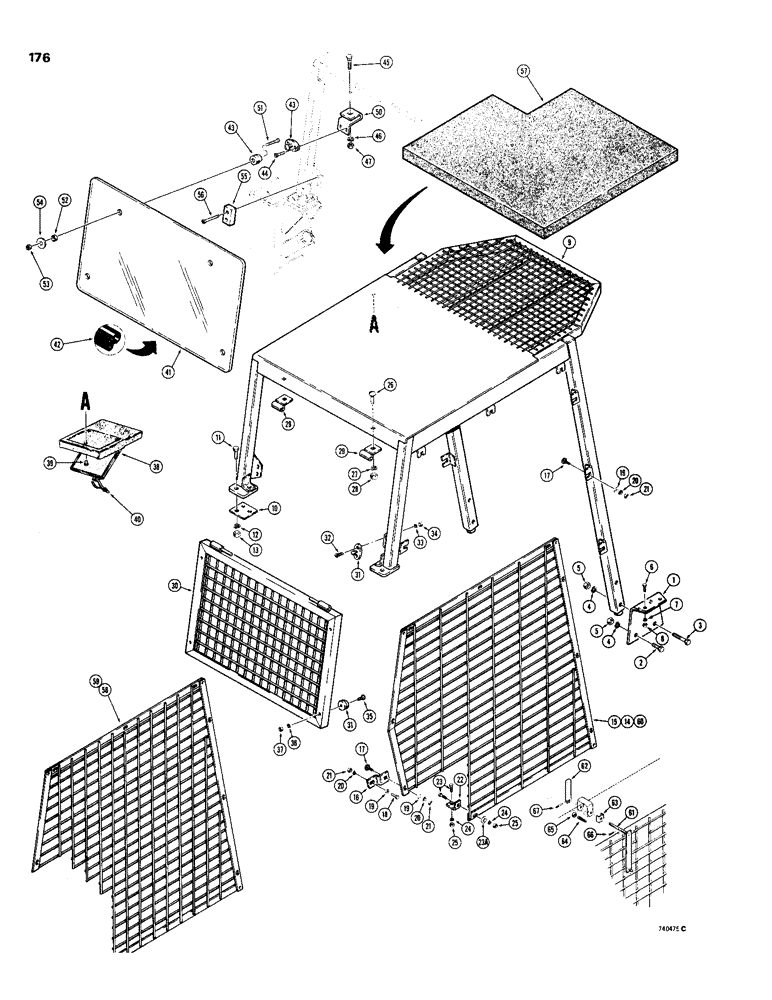

Запчасти Case IH 1830 (176) - ROLL-OVER PROTECTION STRUCTURE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F42809

BRACKET

SUPPORT - ROPS, fender

2шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

F93514

ROPE

FRAME - ROPS

1шт.

10

F42812

BUSHING

SPACER - rear

2шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

F93851

FILTER SCREEN

SCREEN - side, LH

1шт.

15

D90199

SCREEN

- side, RH

1шт.

16

F42811

BRACKET

- screen

2шт.

17

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT - round head, square shoulder, 5/16" - 18 NC x 1", plated

16шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

19

195-521

WASHER,5/16", SAE

- plain, 5/16", plated

18шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

18шт.

21

9635082

NUT,5/16" - 18, Gr 5

18шт.

22

F42810

BRACKET

- screen

2шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

23a

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

25

9635082

NUT,5/16" - 18, Gr 5

4шт.

26

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT - round head, square shoulder, 1/2" - 13 NC x 1-1/4", plated

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

29

F93322

HINGE

- screen, rear, guard

2шт.

30

F93517

FILTER SCREEN

SCREEN - rear, guard

1шт.

31

F93104

HOLDER

- rear guard

2шт.

32

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- machine, flat head, No. 10 - 24 NC x 5/8", plated

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

34

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

35

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- machine, pan head, 1/4" - 20 NC x 5/8", plated

2шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

38

R38893

CASE

BOX - manual, if used

1шт.

39

151-522

RIVET,Pop, 3/16" x .575"

- pop

3шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie, box lid

1шт.

41

D75122

WINDOW - rear, used on models with noise control

1шт.

42

D75121

SEAL - window rear, used on models with noise control

1шт.

43

F93104

HOLDER

- rear window, used on models with noise control

4шт.

44

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- machine, flat head, No. 10 - 24 NC x 5/8", plated, used on models with noise control

4шт.

45

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2, Used on models with noise control

2шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used on models with noise control 1/2"

2шт.

47

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used on models with noise control 1/2"-13, G5

2шт.

48

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, No. 10 - 24 NC, plated, used on models with noise control

8шт.

49

195-513

WASHER,#10

- flat, No. 10, plated, used on models with noise control

8шт.

50

D75084

BRACKET

- holder, used on models with noise control

2шт.

51

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- pan head, 1/4" - 20 NC x 1", used on models with noise control

4шт.

52

F14209

BUSHING

- bolt, used on models with noise control

4шт.

53

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, 1/4" - 20 NC, plated, used on models with noise control

4шт.

54

195-2036

WASHER,13/32" x 2" x .109"

used on models with noise control

4шт.

55

D75085

BUSHING

SPACER, used on models with noise control

2шт.

56

171-227

SCREW,Sl Flat Hd, #10 - 24 x 1 1/4"

- machine, flat head, No. 10 - 24 NC x 1-1/4", plated, used on models with noise control

4шт.

57

D75123

HEADLINER, used on models with noise control

1шт.

58

D77986

SCREEN - side, RH, used on models with noise control

1шт.

59

D77987

SCREEN - side, LH, used on models with noise control

1шт.

60

D90199

SCREEN

- RH, used on models with safety strut

1шт.

61

D80018

ARM

- delatch, used on models with safety strut

1шт.

62

D89708

LEVER

- delatch, used on models with safety strut

1шт.

63

D80803

BRACKET

- delatch, used on models with safety strut

1шт.

64

D79941

SPRING

- delatch, used on models with safety strut

1шт.

65

195-2028

WASHER,.391" x 5/8" x .065"

- flat, 3/8", used on models with safety strut

1шт.

66

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Used on models with safety strut 1/8" x 5/8", Slotted

1шт.

67

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used on models with safety strut 1/8" x 1", Slotted

1шт.
