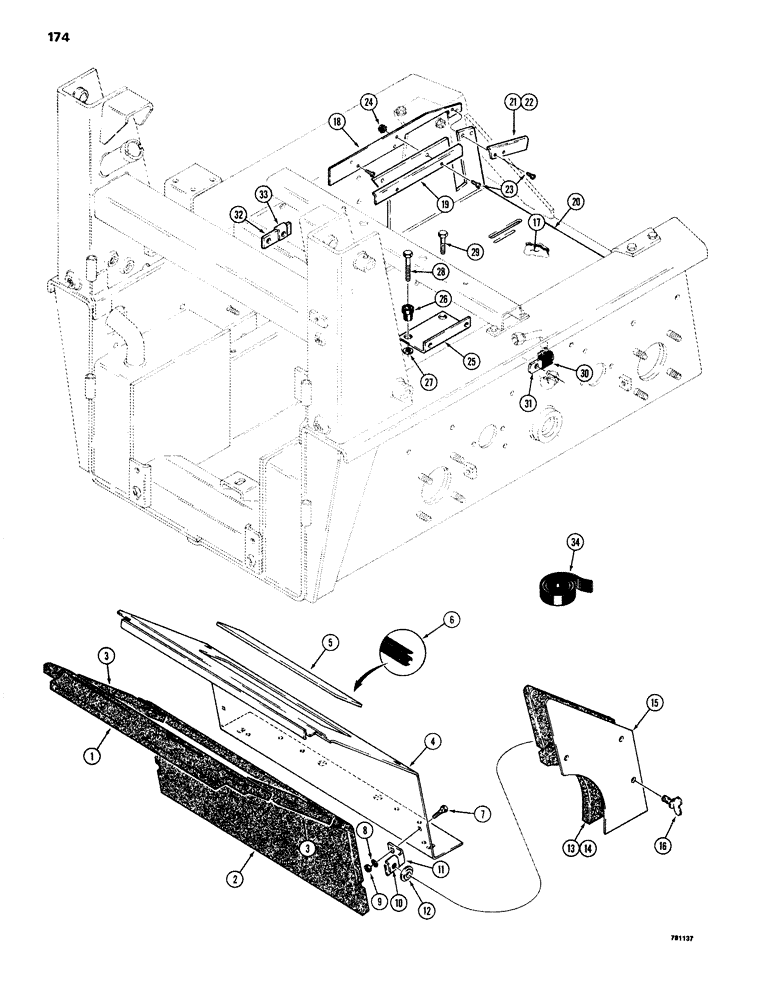

Запчасти Case IH 1830 (174) - NOISE CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D75119

INSULATOR top

1шт.

2

D75120

INSULATOR front

1шт.

3

D75810

PADDING middle

2шт.

4

D75100

SHIELD heat

1шт.

5

REF

INSTRUCTION

WINDOW heat shield, obtain locally

1шт.

6

D77292

LINING

MOLDING window, heat shield

1шт.

7

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT carriage, 5/16" - 18 NC x 1", plated

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

D77757

HOLDER

RECEPTACLE slip on

4шт.

11

D77246

BRACKET

TAB side panel, heat shield

4шт.

12

D77754

GROMMET

6шт.

13

D75116

INSULATOR side, RH

1шт.

14

D75117

INSULATOR side, LH

1шт.

15

D75101

PANEL engine side

2шт.

16

D79733

STUD

wing head

6шт.

17

D63522

PLATE floor

1шт.

18

D77852

STRIP trim mounting

2шт.

19

D77934

STRIP trim

2шт.

20

D73166

FLOORMAT

1шт.

21

D78554

STRIP trim, RH

1шт.

22

D78553

STRIP trim, LH

1шт.

23

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

pan head, No. 10 - 24 NC x 1/2"

14шт.

24

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, No. 10 - 24 NC, plated

14шт.

25

D77132

BRACKET valve

1шт.

26

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT valve bracket

2шт.

27

95-6

WASHER,3/8"

flat, 3/8"

2шт.

28

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

29

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

30

D74182

GROMMET,3/4" ID x 1.46" L

BLOCK isolation

1шт.

31

D74192

CLAMP

tube

1шт.

32

D77906

STRIP

TAB side panel mounting

2шт.

33

D77757

HOLDER

RECEPTABLE slip on

2шт.

34

D76905

FASTENER

Scotchmate, 25 yard, 23 m, long

1шт.
