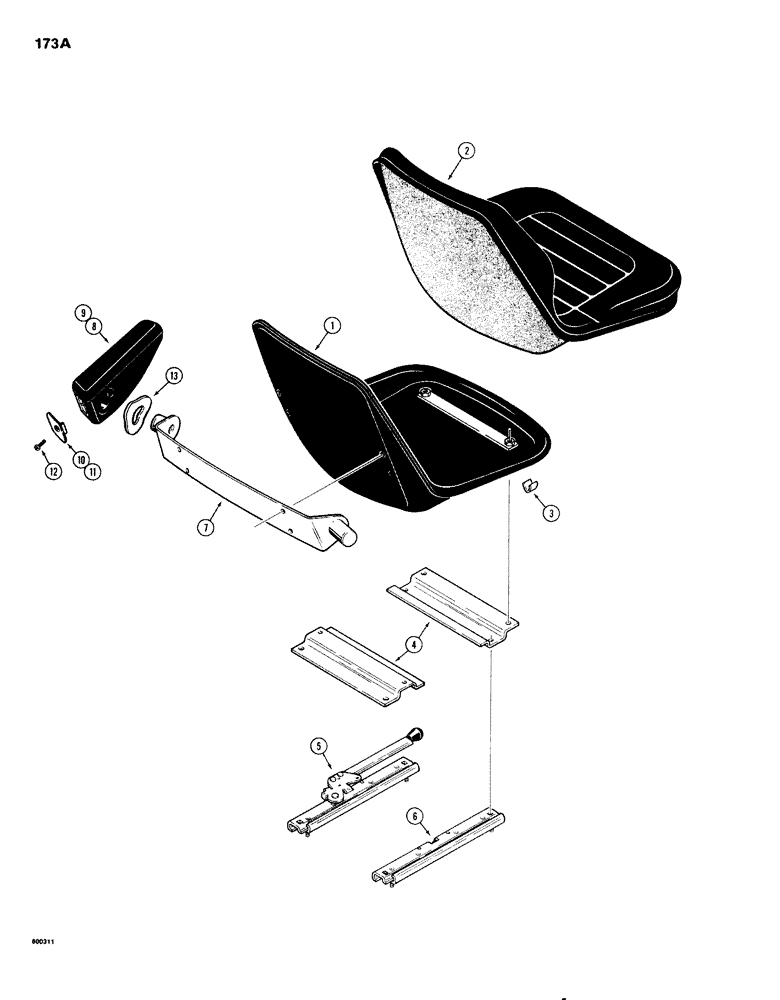

Запчасти Case IH 1830 (173A) - DELUXE UNI-LOADER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

D82233

SEAT

ASSEMBLY operator, Sears, included Ref. 1 through 13.

1шт.

1

N6672

SEAT

PAN seat

1шт.

2

N6673

CUSHION ASSY.

CUSHION seat

1шт.

3

N6674

CLIP

seat

1шт.

4

N6675

BRACKET

slide mounting

2шт.

5

S114284

SLIDE

RAIL slide, with handle

1шт.

6

N6676

RAIL

slide

1шт.

7

N6677

BRACKET

armrest

1шт.

8

A45488

ARMREST

LH

1шт.

9

A45489

ARMREST

RH

1шт.

10

A45583

PLATE

cover, LH

1шт.

11

A45584

COVER

PLATE cover, RH

1шт.

12

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

13

A47352

WASHER

spring

2шт.
