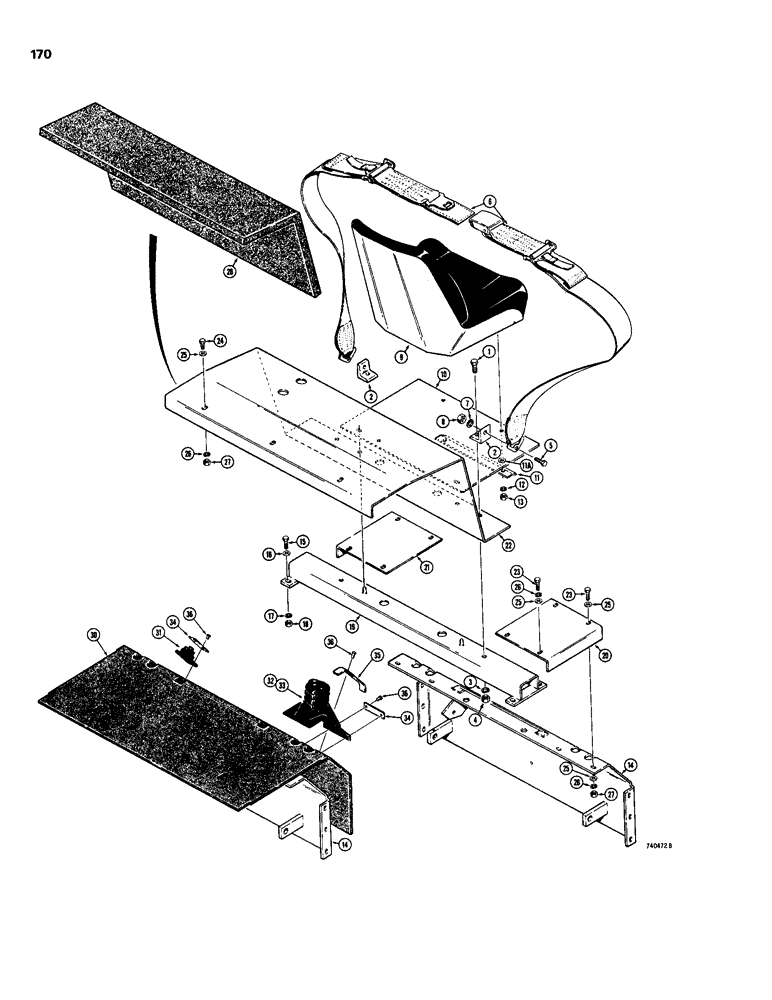

Запчасти Case IH 1830 (170) - HEAT SHIELD, SEAT BELT AND SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

2

D54655

BRACKET

ANGLE seat belt

2шт.

3

92-7

LOCK WASHER,7/16"

2шт.

4

25-107

NUT,7/16"-14, G5

hex, 7/16" - 14 NC

2шт.

5

F42236

STEP BOLT

BOLT shoulder, special

2шт.

6

D60614

SEAT BELT

BELT ASSEMBLY seat, set, 3"

1шт.

6

D75997

SAFETY BELT ,1.80" W

Set 1.80" W

1шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

425-117

NUT,7/16"-20, G5

hex, 7/16" - 20 NF, plated

2шт.

9

D56576

SEAT

ASSEMBLY operators, parts list Fig.172

1шт.

10

D59768

PLATE

seat

1шт.

11

D72913

CLIP

seat

1шт.

11a

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

25-115

NUT,5/16"-24, G5

hex, 5/16"-24 NF

4шт.

14

D65632

PANEL

PLATE kick and panel, with Parker-Hannifin Valve

1шт.

14

D60040

PANEL

PLATE kick and panel, with Cessna Valve

1шт.

REF: #14 THE DESCRIPTION SHOULD READ

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

10шт.

16

195-25

WASHER,3/8"

plain, 3/8"

14шт.

17

92-6

LOCK WASHER,3/8"

10шт.

18

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

10шт.

19

D59770

SUPPORT seat

1шт.

20

D63873

PANEL

seat

1шт.

20

D63874

PANEL

seat, RH, models with diverter valve, not shown

1шт.

21

D63873

PANEL

seat

1шт.

22

D61378

GUARD

SHIELD heat

1шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

12шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

25

195-21

WASHER,5/16"

- plain, 5/16"

30шт.

26

92-5

LOCK WASHER,5/16"

15шт.

27

25-104

NUT,1/4"-20, G5

hex, 5/16" - 18 NC

15шт.

28

REF

INSTRUCTION

PAD insulation, 21" x 33-1/2", 533.4 mm x 850.9 mm, cut from D59897

1шт.

29

D59897

PADDING

PAD bulk, 54" x 36" x 1", 1371.6 mm x 914.4 mm x 25.4 mm, not shown

1шт.

30

D80951

MAT seat support

1шт.

31

D76069

BOOT throttle

1шт.

32

D80972

BOOT control rod, LH

1шт.

33

D80973

BOOT control rod, RH

1шт.

34

D76875

LOCKING TAB

TAB boot mounting

3шт.

35

D80916

STRIP boot mounting

4шт.

36

151-538

RIVET,Pop, 3/16" x .575"

3/16" pop

14шт.

FOR PARKER - HANNIFIN VALVE OR FOR CESSNA VALVE NOT WITH.

1шт.
