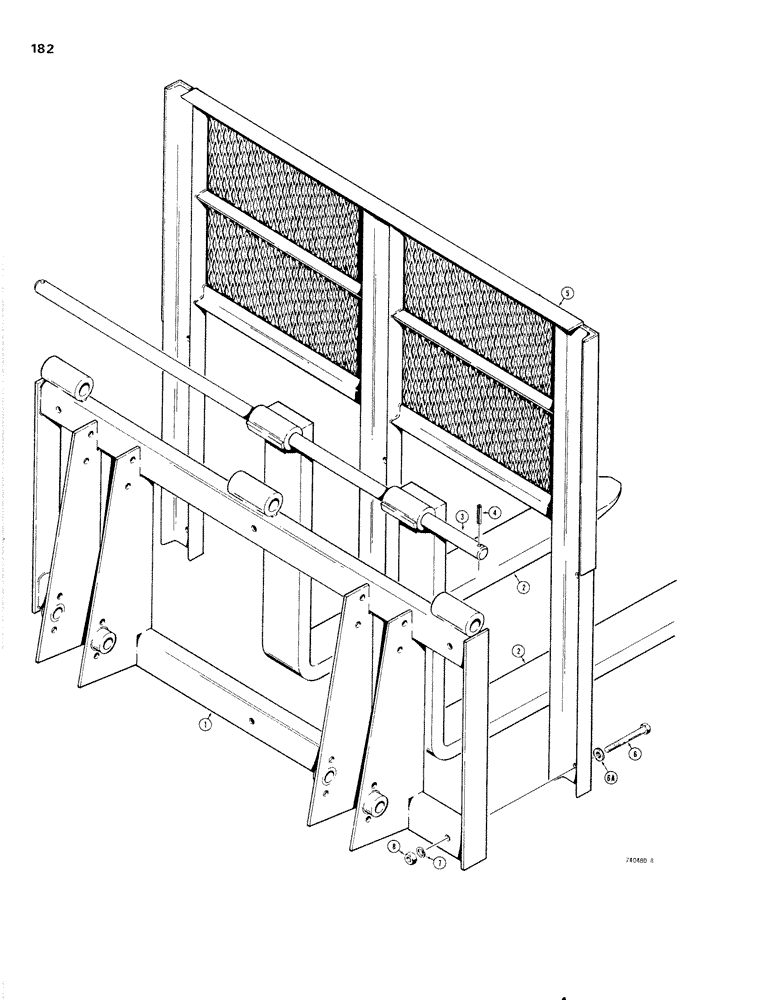

Запчасти Case IH 1830 (182) - PALLET FORK AND BRICK GUARD (89) - TOOLS

1

MACHITEM

FRAME pallet fork, see Fig. 002 for ordering

1шт.

2

D77683

FORK

pallet

2шт.

3

T41522

ROD

fork mounting

1шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

5

MACHITEM

Guard brick, see Fig. 002 for ordering

1шт.

6

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

6шт.

6a

195-106

WASHER,1/2"

- flat, , plated 1/2"

6шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.
