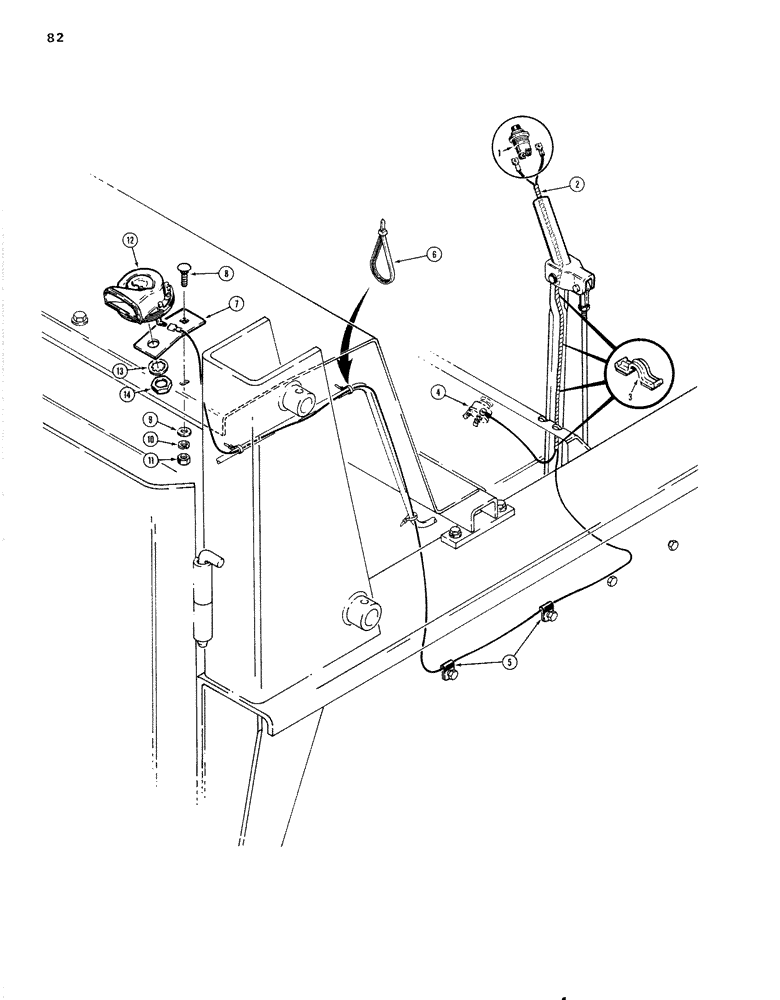

Запчасти Case IH 1830 (082) - ELECTRIC HORN (55) - ELECTRICAL SYSTEMS

1

D91440

SWITCH

BUTTON horn

1шт.

2

D76685

HARNESS

electrical

1шт.

3

F93268

CLIP

wire

4шт.

4

A24511

SWITCH

ignition, w/key (Gas) see Fig. 76 and 82 for related parts

1шт.

5

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

harness

2шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP tie

3шт.

7

D70122

BRACKET

horn mounting

1шт.

8

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

9

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

S203189

HORN

12 volt

1шт.

13

193-36

LOCK WASHER,Int Tooth, 7/8"

WASHER, LOCK, Int Tooth, 7/8"

1шт.

14

L30866

LOCK NUT

hex, 7/8" - 20

1шт.
