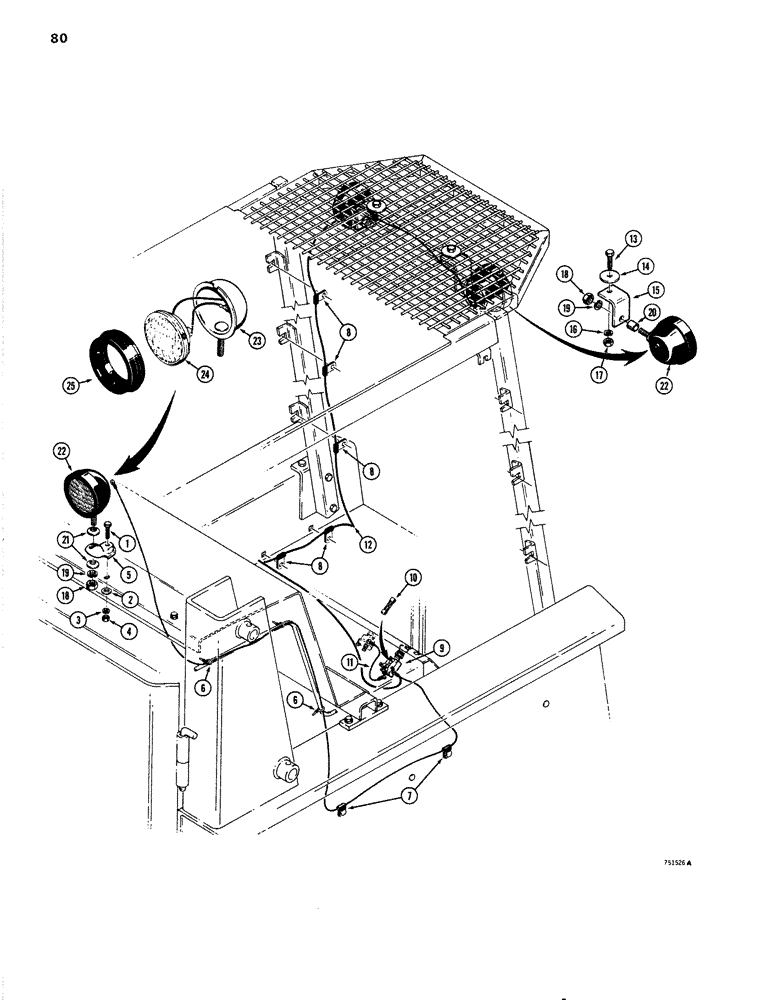

Запчасти Case IH 1830 (080) - LIGHTS (55) - ELECTRICAL SYSTEMS

1

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

2

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

A34046

BRACKET

lamp

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

STRAP wire

1шт.

7

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

"P" style

2шт.

8

D43839

CLAMP

"P" style

5шт.

9

T41560

SWITCH

light

1шт.

10

223-10

FUSE,10 Amp, Type 3AG

10 amp

1шт.

11

D54480

WIRE jumper

1шт.

12

D70030

HARNESS

light

1шт.

13

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS, 3/8" - 11 NC x 1-1/2", plated

2шт.

14

T40254

WASHER

special

2шт.

15

D70114

BRACKET

ANGLE mount

2шт.

16

195-525

WASHER,3/8", SAE

lock, 3/8", plated

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

20

Y214

BUSHING

SPACER light

2шт.

21

10923

WASHER

spring

2шт.

22

D70483

HEADLIGHT

LIGHT ASSEMBLY, 12V, included Ref. 23, 24 and 25.

3шт.

23

NSS

NOT SOLD SEPARAT

BODY

1шт.

24

A42294

SEALED BEAM UNIT

LAMP sealed beam, trade #4406

1шт.

25

A25213

RETAINER

rubber

1шт.
