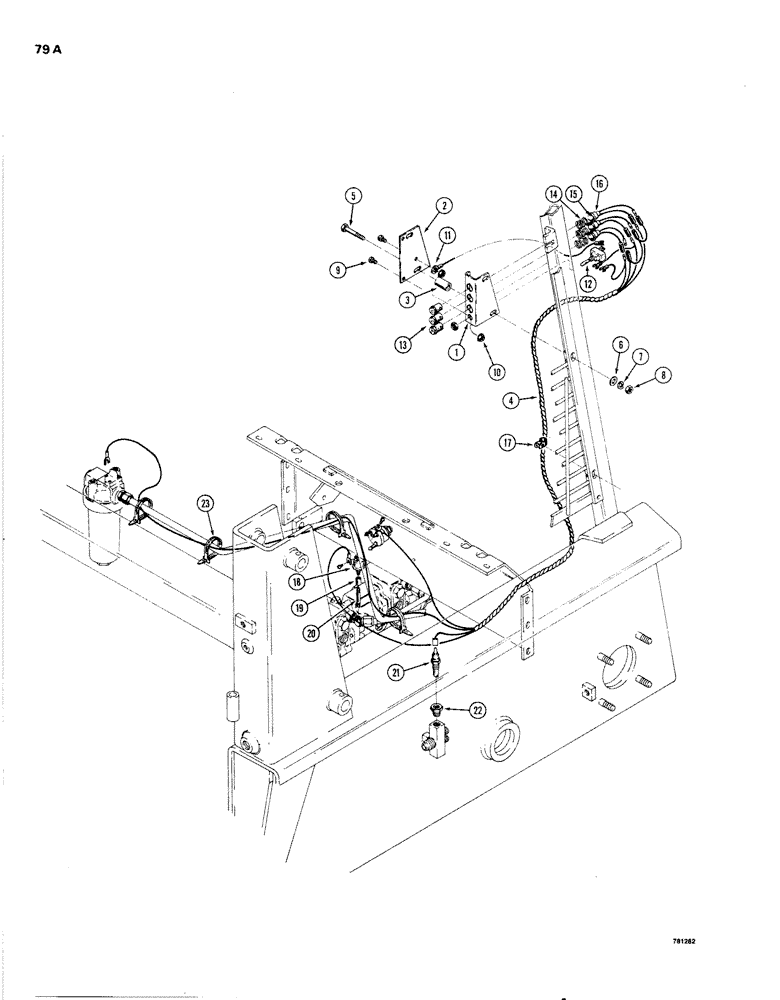

Запчасти Case IH 1830 (079A) - ENGINE WARNING LIGHTS, USED WITH SN 9839801 AND AFTER (55) - ELECTRICAL SYSTEMS

1

D70194

SUPPORT

BRACKET light

1шт.

2

D70278

SUPPORT

PLATE light bracket

1шт.

3

D95552

BUSHING

SPACER bolt

1шт.

4

D80860

HARNESS

front, warning light

1шт.

5

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

6

195-21

WASHER,5/16"

- flat, 5/16

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

182-525

SCREW,Sl Pan Hd, #10 - 32 x 3/8"

pan head, slotted, No. 10 - 32 NC x 3/8"

3шт.

10

193-1000

NUT,Keps, w/LW,#10-32

hex, lock, No. 10 - 32 NC

3шт.

11

D70006

ELECTRICAL WIRE

WIRE jumper

1шт.

12

D70005

SWITCH

toggle, includes hardware

1шт.

D69791

HOUSING

LIGHT charge pressure

1шт.

D70193

INDICATOR LIGHT

LIGHT transmission temperature

1шт.

D80735

INDICATOR LIGHT

LIGHT equipment filter, included Ref. 13 through 16.

1шт.

13

NSS

NOT SOLD SEPARAT

LENS ASSEMBLY all lights

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING all lights

1шт.

15

A24354

BULB

all lights, No. 1895R

1шт.

16

NSS

NOT SOLD SEPARAT

BODY all lights

1шт.

17

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

harness

1шт.

18

D94032

SWITCH

SENDING UNIT pressure, hydraulic oil

1шт.

19

221-326

COUPLING,Pipe, 1/8" NPT

1/8" NPT, sending unit

1шт.

20

221-104

FITTING

NIPPLE, 1/8" x 1-1/8" long, sending unit

1шт.

21

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

SENDING UNIT transmission temperature

1шт.

22

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING reducer 1/2" x 1/4", sending unit

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP tie

4шт.
