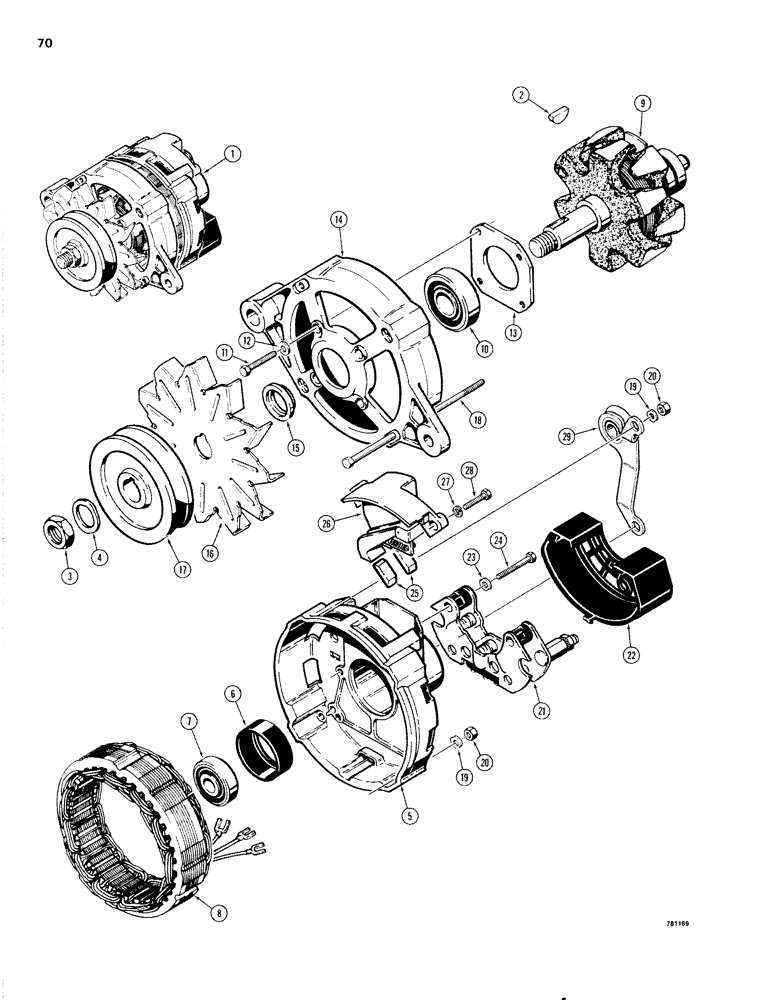

Запчасти Case IH 1830 (070) - D86603 ALTERNATOR, PARIS - RHONE USED ON ENGINE SN 3062 AND AFTER (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D86603
ALTERNATOR
ASSEMBLY Renault 7700644580, included Ref. 2 through 29, P/N D80463, P/N D80458 and P/N D80464.
1шт.
Ref #1 - D86603 (Renault) Alternator replaced by N8252 (Motorola) Alternator. When the new alternator is installed, the N8253 Belt, N8254 Bolt and N8255 Spacer are also adopted.
1шт.
D80463
KIT pulley mounting, included Ref. 2, 3, 4.
1шт.
2
NSS
NOT SOLD SEPARAT
KEY Woodruff
1шт.
3
NSS
NOT SOLD SEPARAT
NUT hex
1шт.
4
NSS
NOT SOLD SEPARAT
WASHER spring
1шт.
5
D80453
HOUSING rear
1шт.
6
D80454
BUSHING rear housing
1шт.
7
D80455
BEARING
rear
1шт.
8
D80456
STATOR
alternator
1шт.
9
D80457
ROTOR alternator
1шт.
10
D65159
BEARING
front housing
1шт.
D80458
KIT bearing mounting, included Ref. 11, 12, 13.
1шт.
11
NSS
NOT SOLD SEPARAT
HHCS
4шт.
12
NSS
NOT SOLD SEPARAT
WASHER spring
4шт.
13
NSS
NOT SOLD SEPARAT
PLATE bearing
1шт.
14
D80459
HOUSING front
1шт.
15
D80460
SPACER
1шт.
16
D80461
FAN cooling
1шт.
17
D80462
PULLEY drive
1шт.
D80464
KIT
hardware, front housing to rear, included Ref. 18, 19, 20.
1шт.
18
NSS
NOT SOLD SEPARAT
HHCS, long
4шт.
19
NSS
NOT SOLD SEPARAT
WASHER spring
4шт.
20
NSS
NOT SOLD SEPARAT
NUT hex
4шт.
21
D80465
DIODE
1шт.
22
D80466
HOUSING diode cover
1шт.
23
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
24
513-2307
BOLT
HHCS, M5 x .8 x 30, grade 8.8
4шт.
25
D80467
BRUSH, COMMUTATOR
BRUSHES, set of 2
1шт.
26
D80468
HOLDER
brush
1шт.
27
D80469
WASHER lock
2шт.
28
D80470
SCREW,Hex
HHCS
2шт.
29
D80471
BRACKET mounting
1шт.
REF: #29 ORDER N8252 BRACKET
1шт.
NEW ALT # IS N8252
1шт.
BELT # IS N8253
1шт.
SPACrnator. When the new alternator is installed, the N8253 Belt, N8254 Bolt and N8255 Spacer are also adopted. Ref. #29 D80471 Bracket is not used when the N8252 Alternator replaces the D86603 Alternator.
1шт.
