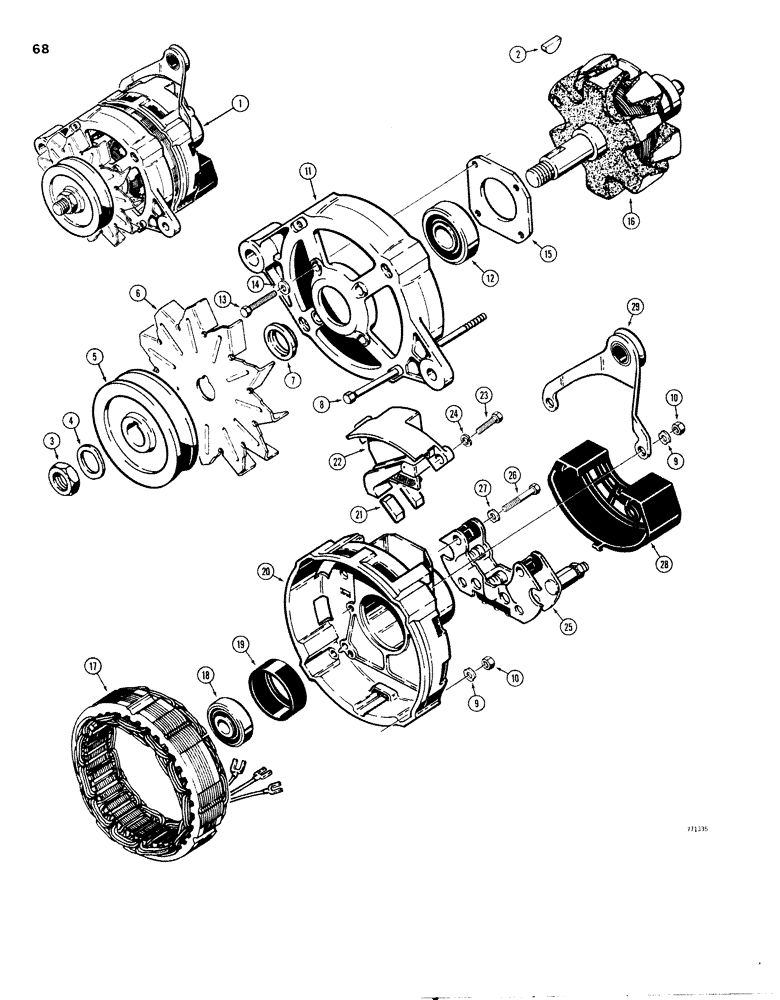

Запчасти Case IH 1830 (068) - D76934 ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

D76934

ALTERNATOR ASSEMBLY Renault 7700561518, included Ref.2 through 29, P/N D80463, P/N D80464 and P/N D80458.

1шт.

D80463

KITpulley mounting, included Ref. 2, 3, 4.

1шт.

2

NSS

NOT SOLD SEPARAT

KEY Woodruff

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER spring

1шт.

5

D80462

PULLEY drive

1шт.

6

D80461

FAN cooling

1шт.

7

D80460

SPACER

1шт.

D80464

KIT

hardware, front housing, included Ref. 8, 9, 10.

1шт.

8

NSS

NOT SOLD SEPARAT

HHCS, long

4шт.

9

NSS

NOT SOLD SEPARAT

WASHER spring

4шт.

10

NSS

NOT SOLD SEPARAT

NUT hex

4шт.

11

D80459

HOUSING front

1шт.

12

D65159

BEARING

front housing

1шт.

D80458

KIT bearing mounting, 13, 14, 15.

1шт.

13

NSS

NOT SOLD SEPARAT

HHCS

4шт.

14

NSS

NOT SOLD SEPARAT

WASHER spring

4шт.

15

NSS

NOT SOLD SEPARAT

PLATE bearing

1шт.

16

D80457

ROTOR alternator

1шт.

17

D80456

STATOR

alternator

1шт.

18

D80455

BEARING

rear

1шт.

19

D80454

BUSHING rear housing

1шт.

20

D80453

HOUSING rear

1шт.

21

D80467

BRUSH, COMMUTATOR

BRUSHES, set of 2

1шт.

22

D80468

HOLDER

brush

1шт.

23

D80470

SCREW,Hex

HHCS

2шт.

24

D80469

WASHER lock

2шт.

25

D80465

DIODE

1шт.

26

513-2307

BOLT

HHCS, M5 x .8 x 30, grade 8.8

4шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

28

D80466

COVER diode

1шт.

29

D80471

BRACKET mounting

1шт.
