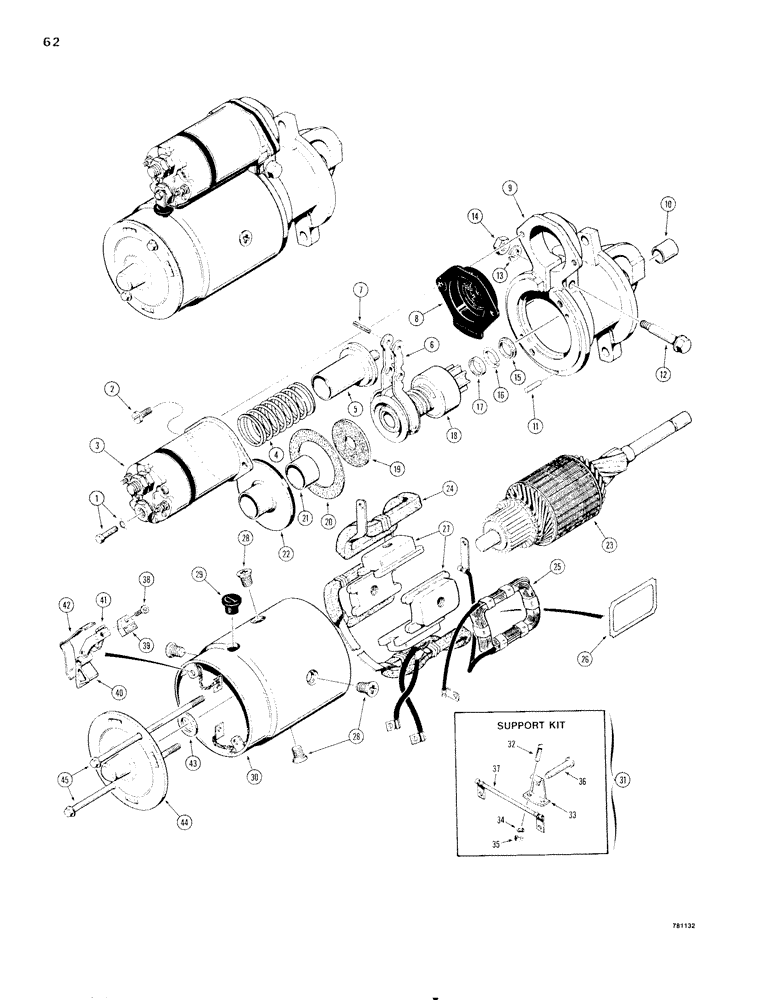

Запчасти Case IH 1830 (062) - D79932 STARTER (55) - ELECTRICAL SYSTEMS

D79932

STARTER MOTOR

STARTER Delco No. 1109430, for service order A47534

1шт.

A47534

STARTING MOTOR

STARTER Delco No. 1109568, included Ref. 1 through 45.

1шт.

1

A42023

SCREW,#10 - 32 x 1/2"

field coil to solenoid, includes lock washer

1шт.

2

169-156

SCREW,Sl Fil Hd, 1/4" - 20 x 3/4"

1/4" - 20 NC x 3/4", plated

2шт.

3

A47539

SOLENOID SWITCH

Delco No.1114458

1шт.

4

A40221

SPRING

plunger

1шт.

5

A40218

PLUNGER

solenoid

1шт.

6

A40220

LEVER

shift, starter drive

1шт.

7

A47538

PIN

roll

1шт.

8

A44870

BOOT solenoid

1шт.

9

A44873

HOUSING ASSEMBLY drive, included Ref. 10, 10A, 11.

1шт.

10

A44869

BUSHING

drive housing

1шт.

10a

A47544

BUSHING

Center bearing, Not shown

1шт.

11

R15041

PIN dowel

1шт.

12

A40520

BOLT

BOLT special

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

15

A44868

WASHER

COLLAR thrust, used with starter D79932

1шт.

15

A25385

WASHER

COLLAR thrust, used with starter A47534

1шт.

16

A44874

OIL SEAL

RING retaining, used with starter D79932

1шт.

16

R15048

RING

retaining, used with stater A47534

1шт.

17

A44875

COLLAR

pinion stop, used with starter D79932

1шт.

17

R15049

COLLAR

pinion stop, used with starter A47534

1шт.

18

A47856

DRIVE

ASSEMBLY starter

1шт.

19

R15043

WASHER

spacer

1шт.

A40215

PLATE ASSY.

PLATE ASSEMBLY center bearing, included Ref.20, 21, 22.

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET plate

1шт.

21

R15038

BUSHING

plate

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE center bearing

1шт.

23

A44872

ARMATURE

used with starter D79932

1шт.

23

A47540

ARMATURE used with starter A47534

1шт.

24

A47535

COIL

field, used with starter D79932

1шт.

24

A47541

COIL field, used with starter A47534

1шт.

A47534 DELCO STARTER IS A REMAN A47492 STARTER

1шт.

25

A44878

COIL

shunt

1шт.

26

A44876

INSULATOR coil, field

1шт.

REF: #26 NSS PER ECS #6074-25 DELCO #1927853

1шт.

27

A40747

SHOE pole, used with starter D79932

4шт.

27

A25390

SHOE pole, used with starter A47534

4шт.

28

A42127

SCREW,3/8" - 24 x 0.20"

shoe pole

4шт.

29

A47536

GROMMET

field terminal

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING coil

1шт.

31

A25379

KIT

support, include Ref.32 through 37.

2шт.

32

175-419

SCREW truss head, #10 - 24 NC x 1/2"

2шт.

33

NSS

NOT SOLD SEPARAT

PIVOT brush, grounded

1шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

35

129-17

NUT,Hex, #10 - 24

NUT, #10 - 24 NC, plated

2шт.

36

R15035

PIN

support

2шт.

37

A42494

ELECTRICAL WIRE

LEAD brush ground

2шт.

38

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

round head, slotted, #8 - 32 x 1/2", plated

4шт.

39

A20893

BRUSH

starter

4шт.

40

R15027

HOLDER

brush, insulated

2шт.

41

A40217

HOLDER

brush, grounded

2шт.

42

A25359

SPRING

brush

2шт.

43

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

special

1шт.

44

A47537

FUNNEL

CAP starter, commutator end

1шт.

45

A41342

BOLT

special

2шт.
