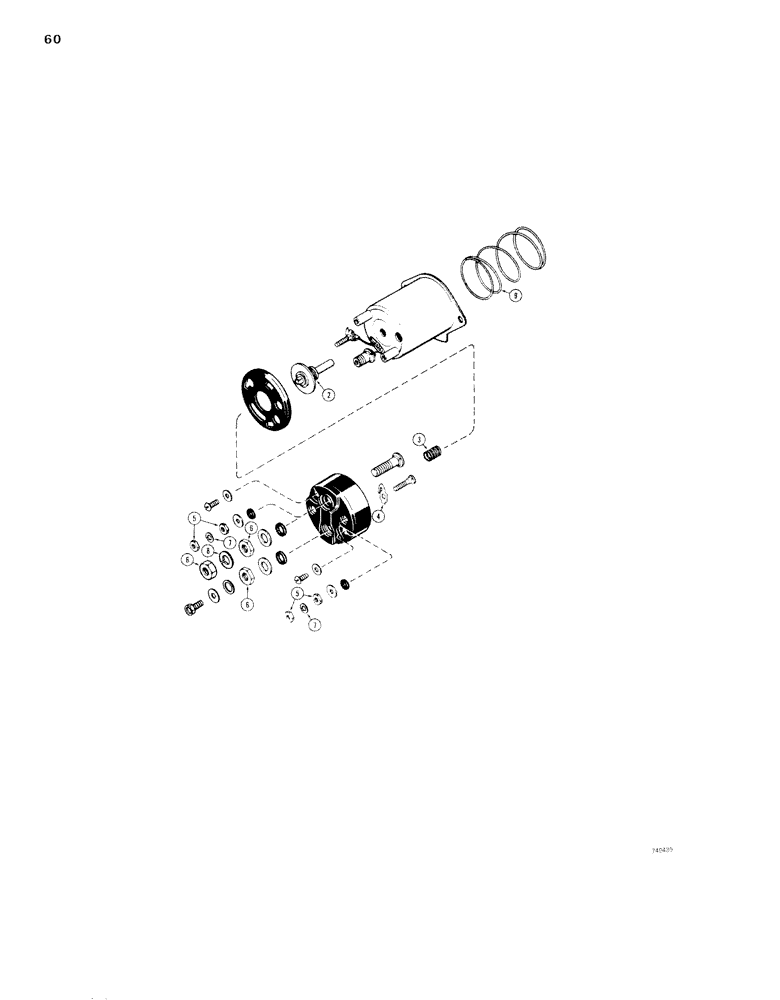

Запчасти Case IH 1830 (060) - G44891 SOLENOID (55) - ELECTRICAL SYSTEMS

G44891

SOLENOID

Delco #1114356, included Ref. 1 through 9.

1шт.

It is suggested your local Delco-Remy dealer be contacted for all parts illustrated but not listed.

1шт.

1

RESERVED

1шт.

2

A42061

SWITCH

CONTACT ASSEMBLY solenoid

1шт.

3

A42059

SPRING

return, contact

1шт.

4

A42060

HALF BLADE

BLADE contact

1шт.

5

129-16

NUT,#8-32

4шт.

6

87016560

JAM NUT,Jam, 3/8"-16, G5

3шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

A42059

SPRING

plunger return

1шт.
