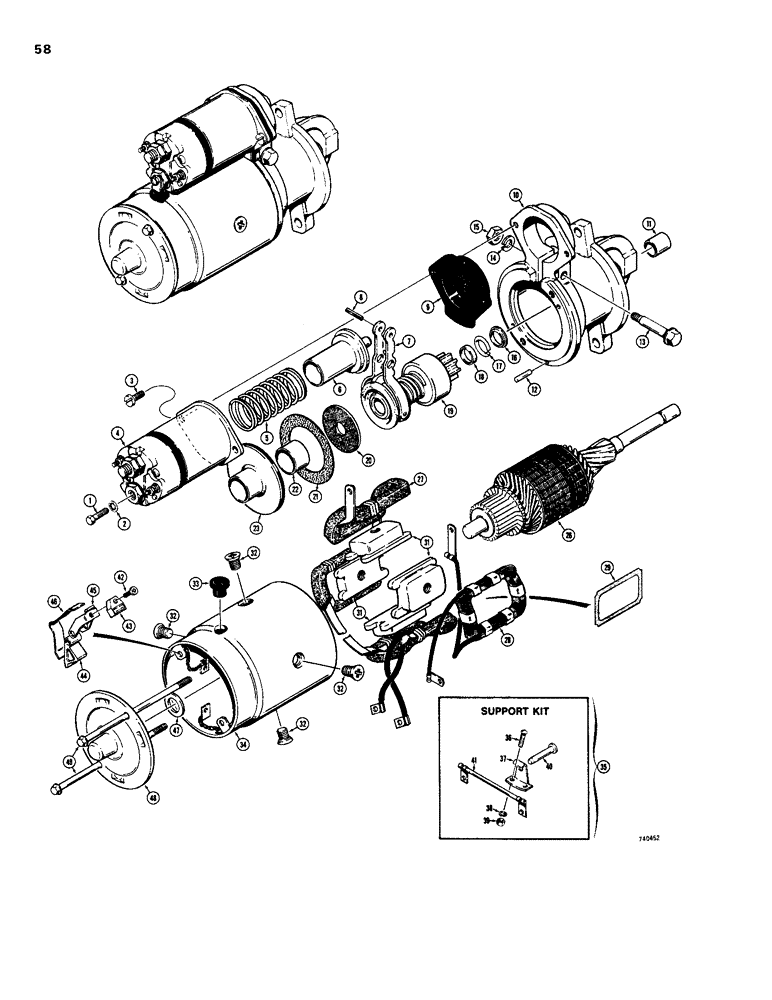

Запчасти Case IH 1830 (058) - D63740 STARTER (55) - ELECTRICAL SYSTEMS

D63740

MOTOR

STARTER Delco #1108511, service with A47534, see Fig. 62, included Ref. 1 through 49.

1шт.

1

A42023

SCREW,#10 - 32 x 1/2"

field, Serial Range: coil-solenoid

1шт.

2

REF

INSTRUCTION

WASHER lock, internal, #10, plated

1шт.

3

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

BOLT round head, slotted, 1/4" - 20 NC x 1/2", plated

2шт.

4

G44891

SOLENOID

switch, parts list Fig. 60, used with starter D63740

1шт.

5

A40221

SPRING

plunger

1шт.

6

A40218

PLUNGER

solenoid

1шт.

7

A44871

LEVER shift, starter drive

1шт.

8

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

9

A44870

BOOT solenoid

1шт.

10

A44873

HOUSING ASSEMBLY drive, included Ref.11, 12.

1шт.

11

A44869

BUSHING

drive housing

1шт.

12

R15041

PIN dowel

1шт.

13

A40520

BOLT

BOLT special

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

15

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

16

A44868

WASHER

COLLAR thrust

1шт.

17

A44874

OIL SEAL

RING retaining

1шт.

18

A44875

COLLAR

pinion stop

1шт.

19

A44867

DRIVE

ASSEMBLY starter

1шт.

20

R15043

WASHER

spacer

1шт.

A40215

PLATE ASSY.

PLATE ASSEMBLY center bearing, included Ref. 21, 22, 23.

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET plate

1шт.

22

R15038

BUSHING

plate

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE center bearing

1шт.

24

RESERVED

1шт.

25

RESERVED

1шт.

26

A44872

ARMATURE

1шт.

27

A44877

COIL

field

1шт.

28

A44878

COIL

shunt

1шт.

29

A44876

INSULATOR coil, field

1шт.

30

RESERVED

1шт.

31

A40747

SHOE pole

4шт.

32

74-610

SCREW,3/8" - 24 x 5/8"

flat head, Philips, 3/8" - 24 NF x 5/8"

4шт.

33

A41935

GROMMET

field terminal

1шт.

34

NSS

NOT SOLD SEPARAT

HOUSING coil

1шт.

35

A25379

KIT

support, included Ref. 36 through 41.

2шт.

36

175-419

SCREW truss head, #10 - 24 NC x 1/2"

2шт.

37

NSS

NOT SOLD SEPARAT

PIVOT brush, grounded

1шт.

38

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

39

129-17

NUT,Hex, #10 - 24

NUT, #10 - 24 NC, zinc plated

2шт.

40

R15035

PIN

support

2шт.

41

A42494

ELECTRICAL WIRE

LEAD brush ground

2шт.

42

182-512

SCREW round head, slotted, #8 - 32 NC x 1/2", plated

4шт.

43

A20893

BRUSH

starter

4шт.

44

R15027

HOLDER

brush, insulated

2шт.

45

A40217

HOLDER

bursh, grounded

2шт.

46

A25359

SPRING

brush

2шт.

47

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

special

1шт.

48

A25302

FUNNEL

CAP starter, commutator end

1шт.

49

A41342

BOLT

special

1шт.
