Запчасти Case IH 1830 (162) - G33744 SCARIFIER CYLINDER, GLAND HAS IDENTIFICATION RING (35) - HYDRAULIC SYSTEMS

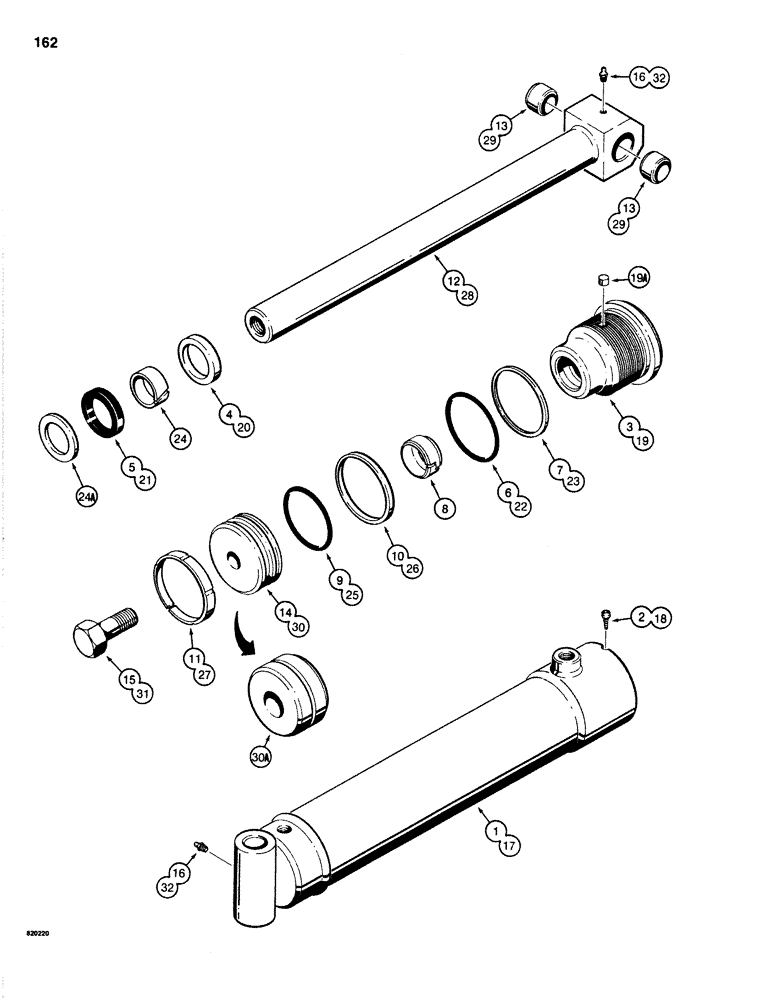

Схема запчастей Case IH 1830 - (162) - G33744 SCARIFIER CYLINDER, GLAND HAS IDENTIFICATION RING (35) - HYDRAULIC SYSTEMS
6
16
20
3
9
15
21
13
4
32
27
23
2
17
1
30
32
7
10
25
29
19
26
28
11
18
16
14
5
24a
31
12
24
29
22
13
8
19a
30a

Артикул

Название

Примечание

Количество

G33744

CYLINDER BLOCK

CYLINDER scarifier, 3" dia. x 13", 76 mm dia. x 330 mm, stroke, included Ref. 1 through 16 and P/N G34328.

1шт.

1

G32271

TUBE,19.56" L

cylinder

1шт.

2

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self tapping, No. 8 - 32 NC x 1"

1шт.

G34328

GLAND

ASSEMBLY cylinder, included Ref. 3 through 8.

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

5

D36969

CUP

SEAL piston rod

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

Part of Seal P/N G100776

1шт.

6

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

WASHER backup

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

8

D27706

WIPER SEAL

WIPER piston rod, inner

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

10

G32034

RING

backup

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

11

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston, used with double groove piston only

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

12

G33753

ROD

piston, 1-1/2", 38 mm, dia., included Ref. 13.

1шт.

13

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod

2шт.

14

NSS

NOT SOLD SEPARAT

PISTON cylinder, double groove, order item 30A below

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

G105502

SEAL

KIT seal, cylinder Includes: Ref. 4, 5, 6, 7, 8, 9, 10 and 11, same as G34656 kit plus Ref. 24A below

1шт.

G100776

SEAL

piston rod, service option - extreme heat or cold, included Ref. 5.

1шт.

G33744

CYLINDER BLOCK

CYLINDER scarifier, 3" dia. x 13", 76 mm dia. x 330 mm, stroke, included Ref. 17 through 32 and P/N G104222., G33744, gland is stamped with part number

1шт.

17

G32271

TUBE,19.56" L

cylinder, G33744 scarifier, gland is stamped with part number

1шт.

18

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self tapping, No. 8 - 32 NC x 1", G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

G104222

GLAND

ASSEMBLY cylinder, included Ref. 19 through 24., G33744 scarifier, is stamped with part number

1шт.

19

NSS

NOT SOLD SEPARAT

GLAND cylinder, G33744 scarifier, is stamped with part number

1шт.

19a

G102569

PLUG

nylon, thread locking, gland, if used, G33744 scarifier cylinder, is stamped with cylinder part number

1шт.

20

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer, G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

21

D36969

CUP

SEAL piston rod, G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

Part of Seal P/N G100776

1шт.

22

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

23

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

WASHER backup, G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

24

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING, Rulon, G33744 scarifier cylinder, Gland is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

24a

G104224

SEAL

piston rod, narrow, used in addition to item 21 in some glands, G33744 scarifier cylinder, is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

25

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

26

G32034

RING

backup, G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

27

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston, used with G33747 piston only, G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

Part of Cylinder Seal Kit P/N G105502

1шт.

28

G33753

ROD

piston, 1-1/2", 38 mm, dia., included Ref. 29., G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.

29

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod, G33744 scarifier cylinder, gland is stamped with cylinder part number

2шт.

30

NSS

NOT SOLD SEPARAT

PISTON cylinder, double groove, if used, order item 30A below, G33744 scarifier , gland is stamped with part number

1шт.

30a

G104108

PISTON

cylinder, single groove, replaces G33747 piston, if used, G33744 scarifier, gland is stamped with part number

1шт.

31

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

G33744 scarifier cylinder, gland is stamped with cylinder part number Hex, 3/4-16 x 2", G8, Full Thd

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT, G33744 scarifier cylinder, gland is stamped with cylinder part number

2шт.

G105502

SEAL

KIT seal, cylinder Includes: Ref. 20, 21, 22, 23, 24, 24A, 25, 26 and 27, same as G34656 kit plus Ref. 24A above, G33744 scarifier, gland is stamped with part number

1шт.

G100776

SEAL

piston rod, service option - extreme heat or cold, included Ref. 21., G33744 scarifier cylinder, gland is stamped with cylinder part number

1шт.
