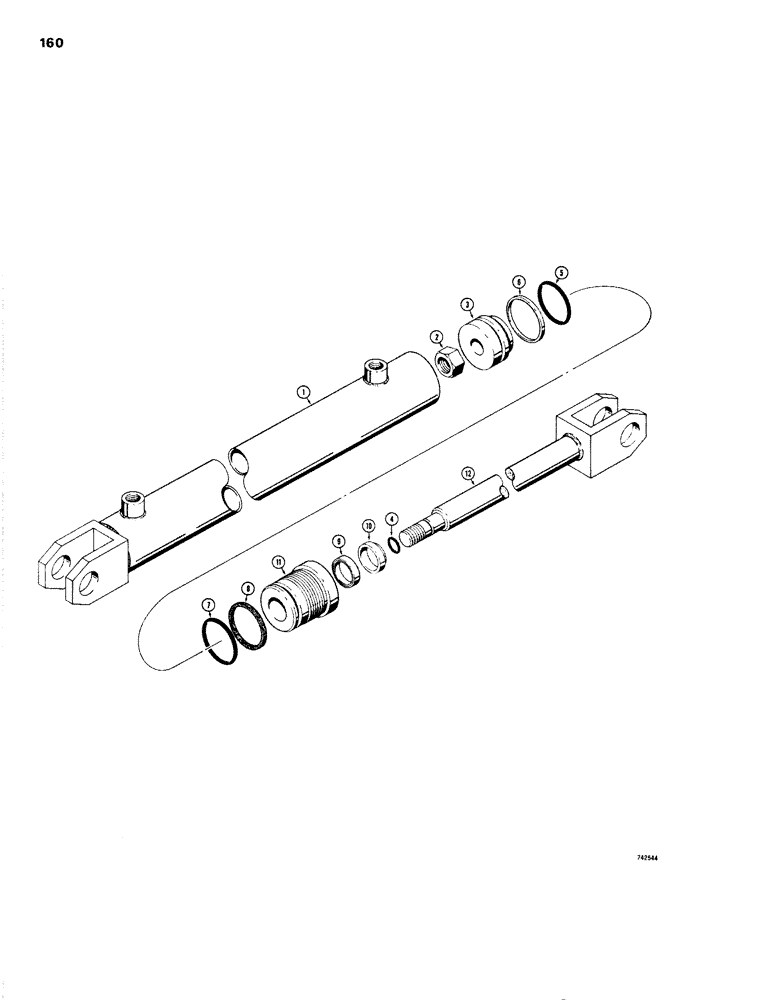

Запчасти Case IH 1830 (160) - D61075 GRAPPLE CYLINDER (35) - HYDRAULIC SYSTEMS

D61075

CYLINDER

grapple, 2" ID x 8", 50 mm ID x 203 mm, stroke, included Ref. 1 through 12.

2шт.

1

D61010

TUBE

cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4" - 16 NF

1шт.

3

D60996

PISTON

tube

1шт.

D61006

GASKET KIT

KIT seal, cylinder, included Ref. 4 through 10.

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

piston, inner

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

piston, outer

1шт.

6

D60995

RING

piston

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland

1шт.

8

A35884

WASHER

backup

1шт.

9

D60999

WIPER SEAL

WIPER "U" cup, inner gland

1шт.

10

D60997

WIPER SEAL

WIPER rod, outer gland

1шт.

11

D61002

GLAND

cylinder

1шт.

12

D61011

ROD

cylinder, 1", 25 mm, OD

1шт.
