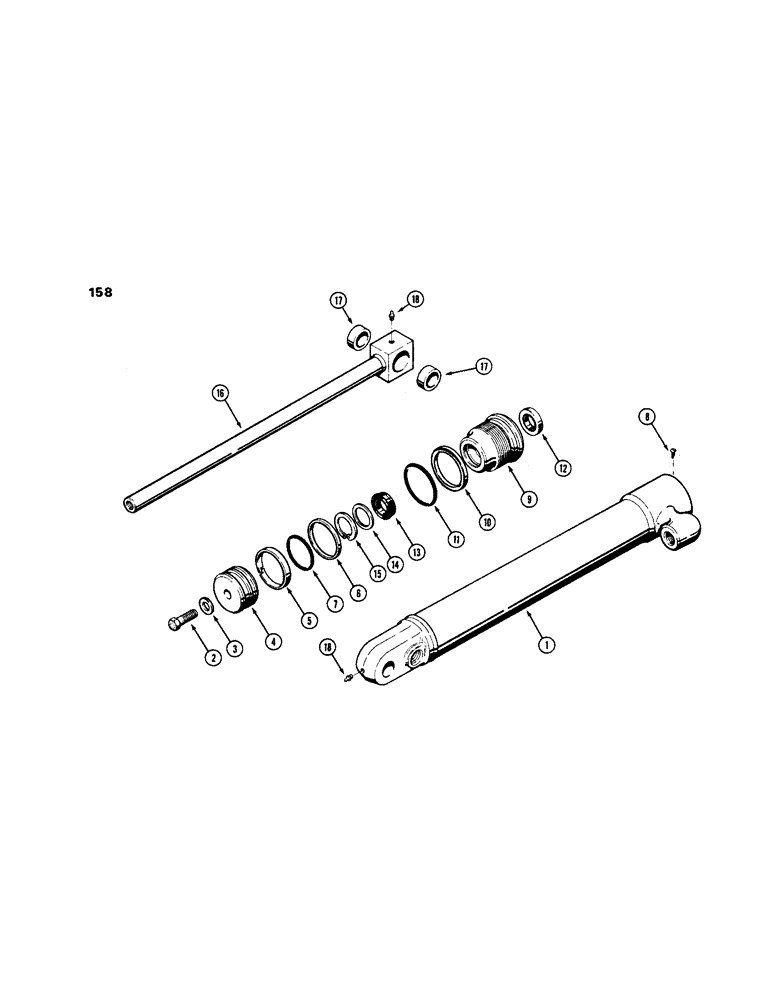

Запчасти Case IH 1830 (158) - G34786 BUCKET TILT CYLINDER, SEE ITEMS 13 THRU 15 FOR IDENTIFICATION (35) - HYDRAULIC SYSTEMS

G34786

CYLINDER

bucket, 2-1/2" ID x 15-27/32", 63 mm ID x 402 mm, stroke, order G100066, used before tractor sn 9845302, included Ref 1 through 18 and P/N G34808.

2шт.

1

G34793

TUBE,22.53" L

cylinder

1шт.

2

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

HHCS, 1/2" - 20 NF x 1-1/2", grade 8

1шт.

3

G35009

WASHER

hardened

1шт.

4

G34804

PISTON

cylinder

1шт.

5

G100714

RING

wear

1шт.

Part of Seal Repair Kit P/N G34807

1шт.

6

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

seal

1шт.

Part of Seal Repair Kit P/N G34807

1шт.

7

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

Part of Seal Repair Kit P/N G34807

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self tapping, No. 8 - 32 NC x 1/4"

1шт.

G34808

GLAND

ASSEMBLY repair, order G35377 shown below, included Ref. 9 through 15.

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Repair Kit P/N G34807

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Seal Repair Kit P/N G34807

1шт.

12

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

WIPER rod

1шт.

Part of Seal Repair Kit P/N G34807

1шт.

13

G34803

SEAL

SEAL rod

1шт.

Part of Seal Repair Kit P/N G34807

1шт.

Part of Seal P/N G100774.

1шт.

14

G34806

RING

backup

1шт.

15

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, 1.50", Int, #150

1шт.

16

G34799

PISTON ROD

ROD piston, 1", 25 mm, dia., included Ref. 17.

1шт.

17

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

G34807

SEAL

KIT seal repair, Includes: Ref. 5, 6, 7, 10, 11, 12 and 13

1шт.

G100774

SEAL ASSY.

SEAL rod, service option - extreme heat or cold, included Ref. 13.

1шт.
