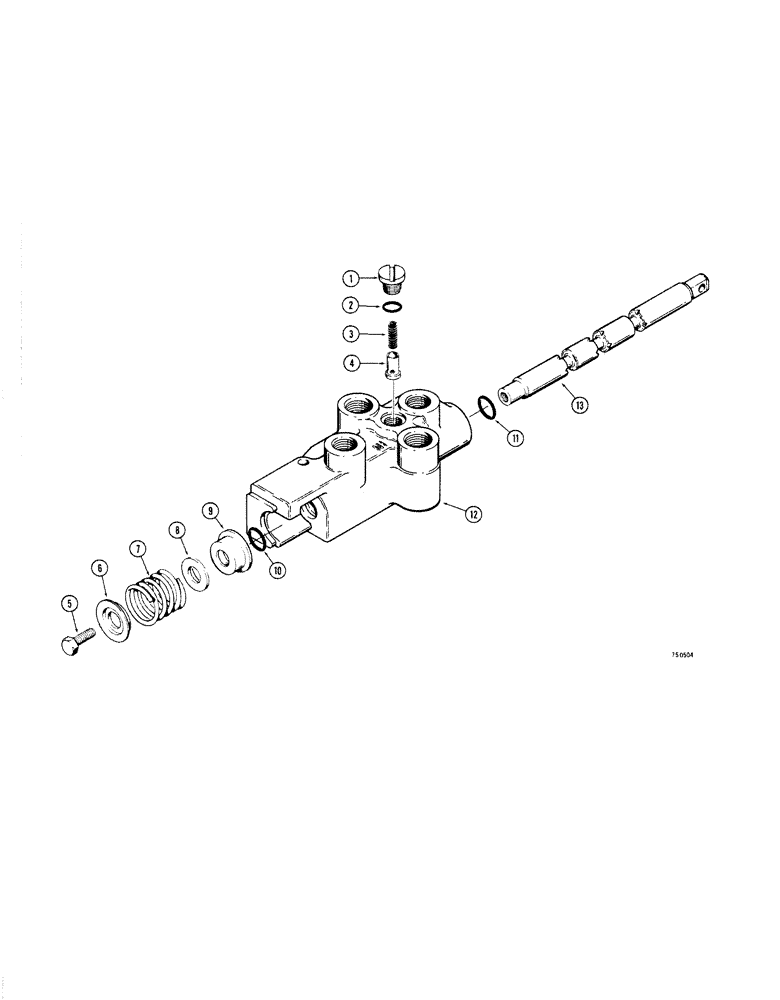

Запчасти Case IH 1830 (154[1]) - G64670 AUXILIARY CONTROL VALVE (1 SPOOL) CESSNA #30511-AAK (35) - HYDRAULIC SYSTEMS

D64670

VALVE

hydraulic, included Ref. 1 through 13.

1шт.

1

FH730382

PLUG

check, included Ref. 2, 3 and 4.

1шт.

2

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

3

FH730374

SPRING

check

1шт.

4

A72062

SEALING RING

PLUNGER check

1шт.

5

H138248

SCREW,1/4" - 20 x 7/16"

BOLT special

1шт.

6

F59116

WASHER

RETAINER spring

1шт.

7

H220517

SPRING

spool

1шт.

8

H746164

WASHER

special

1шт.

9

H52902

CAP

RETAINER spring

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

11

F37887

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL

1шт.
