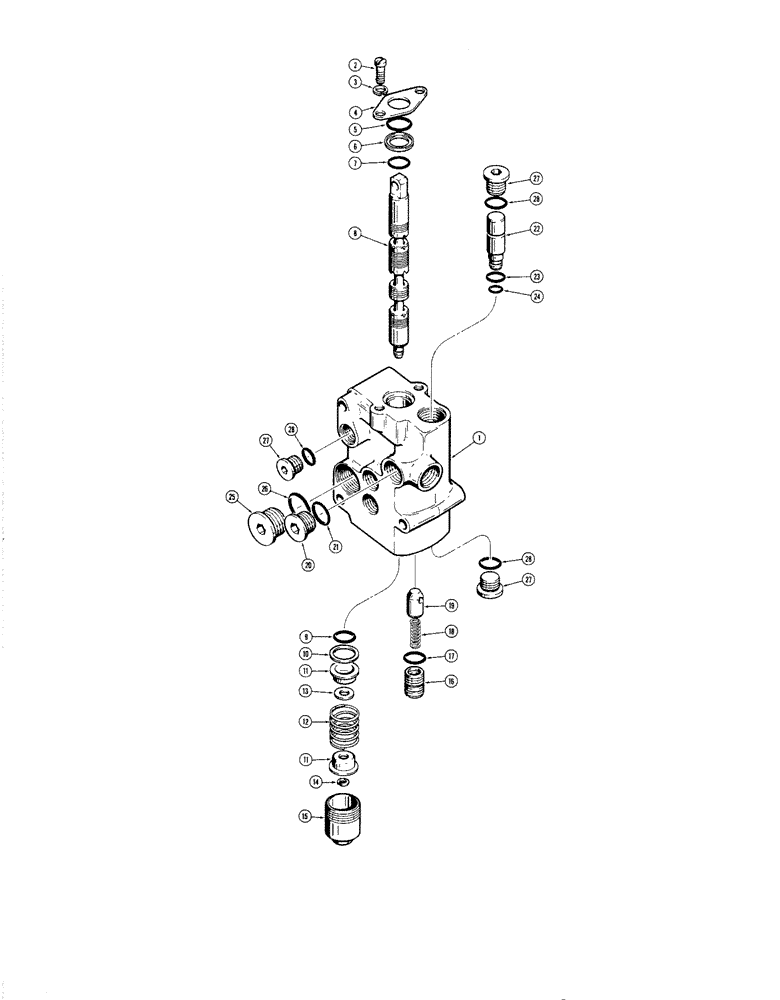

Запчасти Case IH 1830 (152) - D65377 AUXILIARY CONTROL VALVE (1 SPOOL), PARKER HANNIFIN #VDP 11 69 (35) - HYDRAULIC SYSTEMS

D65377

VALVE hydraulic, included Ref 1 through 28, P/N W12103, P/N D20771, P/N W12109 and P/N 12098.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

W12103

SEAL

ASSEMBLY spool, included Ref. 2 through 7 and P/N D20771.

1шт.

D20771

SCREW AND WASHER ASSEMBLY, included Ref. 2 and 3.

2шт.

2

NSS

NOT SOLD SEPARAT

SCREW slotted, 3/8" - 16 NC x 2"

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

4

A14531

PLATE ASSY.

PLATE retaining, wiper

1шт.

5

A14527

SCRAPER

WIPER spool

1шт.

6

A14526

RETAINER

seal

1шт.

7

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

W12109

SPOOL

ASSEMBLY valve, included Ref. 8 through 14.

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

10

A14535

RETAINER

seal

1шт.

11

A14533

BRONZE BUSHING

RETAINER spring

2шт.

12

A14534

SPRING

spool return

1шт.

13

W12113

BUSHING

WASHER spring spacer

1шт.

14

A27020

RING

snap

1шт.

15

A14529

CAP

spool

1шт.

W12098

CHECK VALVE

included Ref. 16 through 19.

1шт.

16

A14532

CAP

valve

1шт.

17

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

1шт.

18

A14520

VALVE SPRING

SPRING check valve

1шт.

19

A16686

CAM

POPPET check valve

1шт.

20

86625138

PLUG,7/18" - 14

Allen head, Included Ref. 21 Hex Soc, 7/8"-14 ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

D66283

PLUG relief

1шт.

23

A65918

O-RING,0.551" ID x 0.691" OD

large

1шт.

24

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

small

1шт.

25

9841223

PLUG,1-1/16" - 12 ORB

hex, Allen head, included Ref. 26.

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Allen head, Incl Ref 28 Hex Soc, 3/4"-16 ORB

3шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
