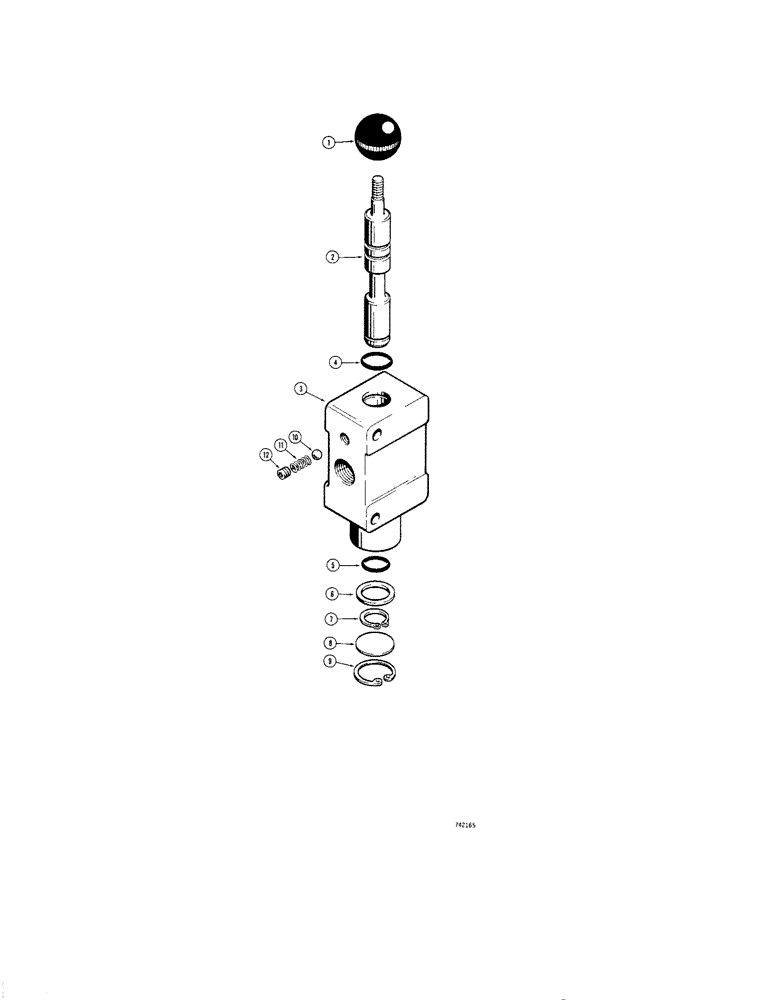

Запчасти Case IH 1830 (152[1]) - D65378 DIVERSION VALVE CS&S #A2078-24-1 (35) - HYDRAULIC SYSTEMS

D65378

VALVE

diversion, included Ref. 1 through 12.

1шт.

1

D66441

BALL

handle

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

3

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

upper

1шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

lower

1шт.

6

D66438

WASHER

backup

1шт.

7

D66439

SNAP RING small

1шт.

8

D66440

COVER ASSY

PLUG Welch

1шт.

9

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, 1.50", Int, #150

1шт.

10

221-19

BALL steel

1шт.

11

23137

VALVE SPRING

SPRING

1шт.

12

221-1849

PLUG

hex, socket head

1шт.
