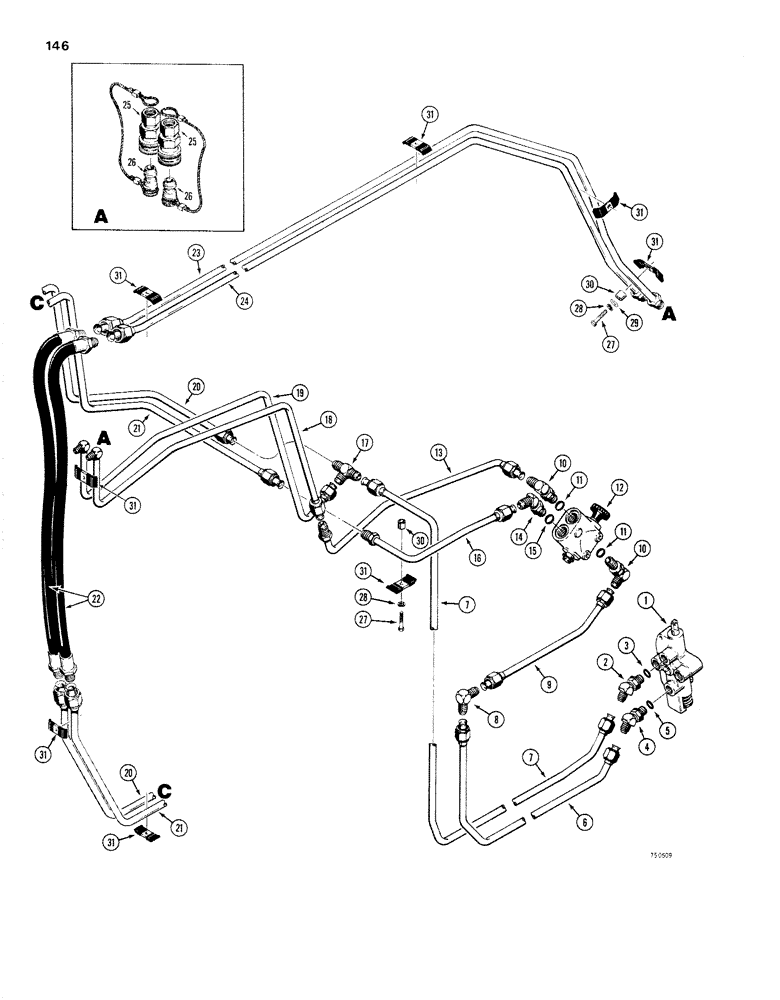

Запчасти Case IH 1830 (146) - AUXILIARY HYDRAULICS USED WITH CESSNA VALVE LOADER ARM AND REAR HYD. W/ DIVERTER VALVE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D64670
VALVE
one spool, parts list Fig.154
1шт.
2
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
45 degree, male, Incl. Ref 3
1шт.
4
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
45 degree, male, Incl. Ref 5
1шт.
6
D65514
TUBE
at one spool valve, lower port
1шт.
7
D65516
TUBE
at one spool valve, upper port
1шт.
8
218-474
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC
male 90º, 3/4"-16, 37º x 3/4"-16, 37º
1шт.
9
D62547
TUBE
at diverter valve, from one spool valve
1шт.
10
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
90 degree, adjustable, male, included Ref. 11.
2шт.
12
G34981
VALVE
diverter, parts list Fig.154
1шт.
13
D62937
TUBE
at diverter valve, to rear hydraulics
1шт.
14
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
45 degree, male, Incl. Ref 15
1шт.
16
D62933
TUBE
at diverter valve, to loader arm hydraulics
1шт.
17
218-594
TEE,3/4"-16, 37 Degree
male
1шт.
18
D69058
TUBE,0.5" OD x 27.1, 19.42" L
rear hydraulics, long
1шт.
19
D69056
TUBE,0.5" OD x 23.36, 16.7" L
rear hydraulics, short
1шт.
20
D62551
TUBE
to loader arm, outer
1шт.
21
D62553
TUBE
to loader arm, inner
1шт.
22
D61484
HOSE
hydraulic, 29", 736.6 mm, long
2шт.
23
D61590
TUBE
loader arm, outer
1шт.
24
D61592
TUBE
loader arm, inner
1шт.
25
D60707
COUPLING, BREAK AWAY
COUPLING quick disconnect
4шт.
26
D62402
PLUG
dust
4шт.
27
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
9шт.
28
92-5
LOCK WASHER,5/16"
9шт.
29
195-21
WASHER,5/16"
- plain, 5/16"
2шт.
30
D33551
BUSHING
SPACER clamp
9шт.
31
D33316
CLAMP
tube
9шт.
3
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
5
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
11
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
15
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
Выбрано товаров: 31
