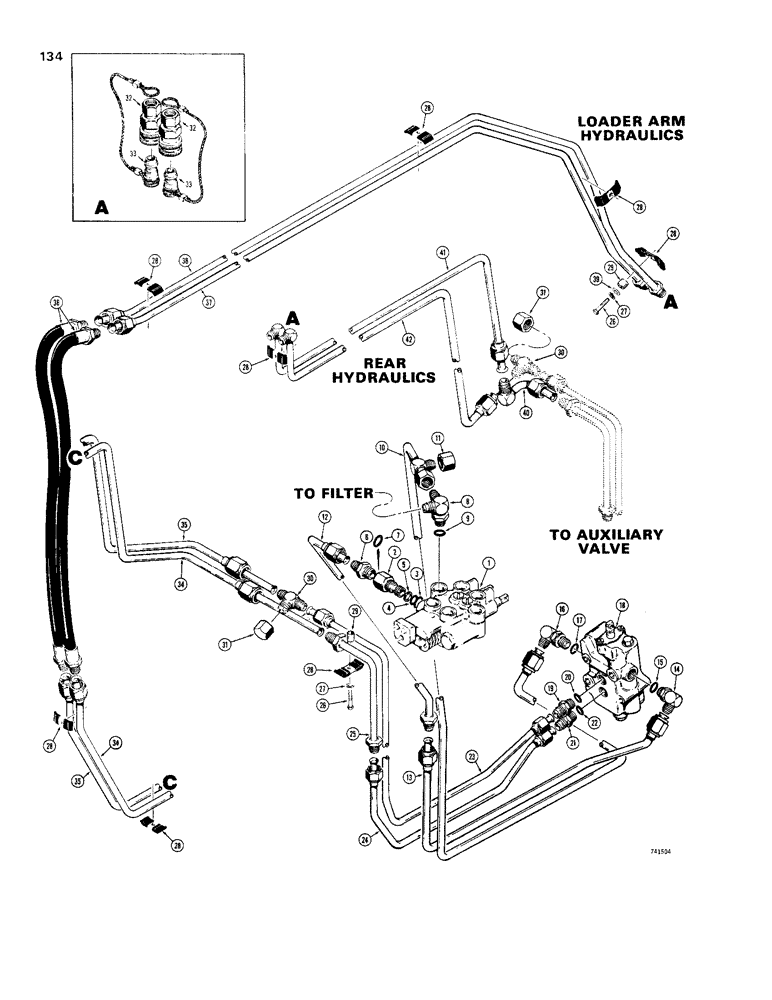

Запчасти Case IH 1830 (134) - AUXILIARY HYDRAULICS, LOADER ARM & REAR HYDRAULICS W/O DIVERTER VALVE (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - 2 spool, see Fig.148

1шт.

2

D61608

SLEEVE

- power beyond

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-ring, large

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - O-ring, small

1шт.

5

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

1шт.

8

D61606

TEE

- special

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

1шт.

10

D65542

TUBE - 2 spool valve to 1 spool valve

1шт.

11

218-756

CAP,37 Degree, 7/8"-14

Hydraulics 37º, 7/8"-14

1шт.

12

D63770

TUBE

- at power beyond fitting

1шт.

13

D65540

TUBE - from power beyond fitting at one spool valve

1шт.

14

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degrees, adjustable, male

1шт.

15

2185007

SEAL - O-ring

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, male 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - O-ring

1шт.

18

D65377

VALVE - auxiliary, one spool, parts list Fig.152

1шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male

1шт.

23

D65544

TUBE

- at 1 spool valve to loader arm or rear hydraulics

1шт.

24

D65546

TUBE - at 1 spool valve to loader arm or rear hydraulics, lower

1шт.

25

D62549

TUBE

- 1 spool valve to loader arm or rear hydraulics, upper

1шт.

26

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

2-8шт.

27

92-5

LOCK WASHER,5/16"

2-8шт.

28

D33316

CLAMP

- tube

2-8шт.

29

D33551

BUSHING

SPACER - clamp

2-8шт.

30

218594

TEE - male

1шт.

31

218-755

CAP,37 Degree, 3/4"-16

Hydraulic 37º, 3/4"-16

1шт.

32

D60707

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female

2шт.

33

D62402

PLUG

- dust

2шт.

34

D62553

TUBE

- to loader arm, hydraulics without diverter valve

1шт.

35

D62551

TUBE

- to loader arm, hydraulics without diverter valve

1шт.

36

D61484

HOSE

- hydraulic, 29", 736.6 mm, long, loader arm without diverter valve

2шт.

37

D61592

TUBE

- loader arm, hydraulics without diverter valve

1шт.

38

D1590

TUBE - loader arm, hydraulics without diverter valve

1шт.

39

195-21

WASHER,5/16"

- flat, , Loader arm hydraulics without diverter valve 5/16"

1шт.

40

D69054

TUBE,0.5" OD x 3, 2.6" L

- hydraulic, bent, rear without diverter valve

1шт.

41

D69056

TUBE,0.5" OD x 23.36, 16.7" L

- hydraulic, short, rear without diverter valve

1шт.

42

D69058

TUBE,0.5" OD x 27.1, 19.42" L

- hydraulic, long, rear without diverter valve

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - O-ring

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - O-ring

1шт.
