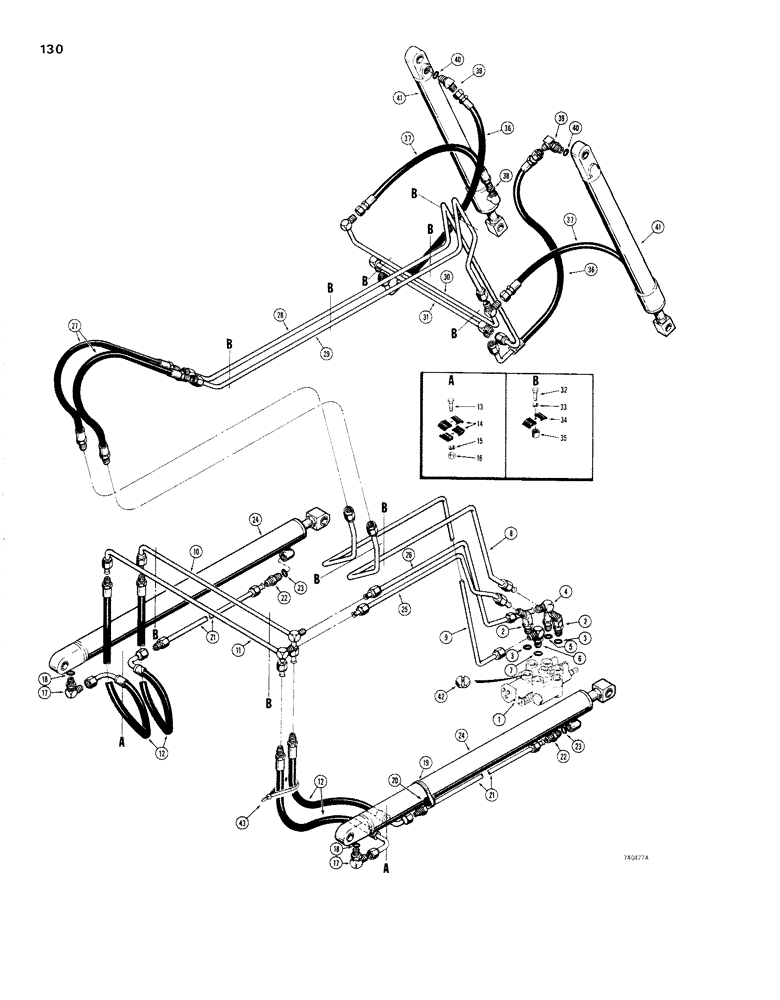

Запчасти Case IH 1830 (130) - LOARDER LIFT AND DUMP HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE hydraulic, 2 spool, see Fig.148

1шт.

2

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

45 degrees, male, adjustable, included Ref. 3.

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL O-ring

1шт.

4

D36934

FITTING

ELBOW, 90 degrees, special, included Ref. 5.

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL O-ring

1шт.

6

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degrees, male, adjustable, included Ref. 7.

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL O-ring

1шт.

8

D62350

TUBE

dump, at valve, port B

1шт.

9

D62352

TUBE

dump, at valve, port A

1шт.

10

D61493

TUBE

lift, crossover, front

1шт.

11

D61489

TUBE

lift, crossover, rear

1шт.

12

D61483

HOSE

ASSEMBLY lift

4шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS, 5/16" - 18 NC x 1-3/4"

2шт.

14

D33316

CLAMP

tube

4шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degrees, male, adjustable, included Ref. 18.

2шт.

19

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP screw

2шт.

20

D38648

BLOCK

SADDLE rubber

2шт.

21

D60432

TUBE

lift cylinder, rod end

2шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, included Ref 23.

2шт.

24

G34864

CYLINDER

lift, parts list Fig.156

2шт.

25

D60967

TUBE

lift, at valve, port A

1шт.

26

D60965

TUBE

lift, at valve, port B

1шт.

27

D61484

HOSE

bucket dump, 29", 736.6 mm, long

2шт.

28

D61497

TUBE

bucket dump, on lift arm, inner

1шт.

29

D61495

TUBE

bucket dump, on lift arm, outer

1шт.

30

D61506

TUBE

bucket dump, crossover, front

1шт.

31

D61508

TUBE

bucket dump, crossover, rear

1шт.

32

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS, 5/16" - 18 NC x 1-1/4"

9шт.

33

92-5

LOCK WASHER,5/16"

9шт.

34

D33316

CLAMP

tube

9шт.

35

D33551

BUSHING

SPACER tube

9шт.

36

D61500

HOSE

dump cylinder, closed end, 22", 558.8 mm, long

2шт.

37

D61499

HOSE

dump cylinder, rod end, 18", 457.2 mm, long

2шт.

39

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

45 degrees, male, adjustable, Incl. Ref 40

2шт.

41

REF

INSTRUCTION

CYLINDER bucket dump, see Fig.158

2шт.

42

D73659

FITTING

PLATE orifice

1шт.

43

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP tie

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.

40

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.
