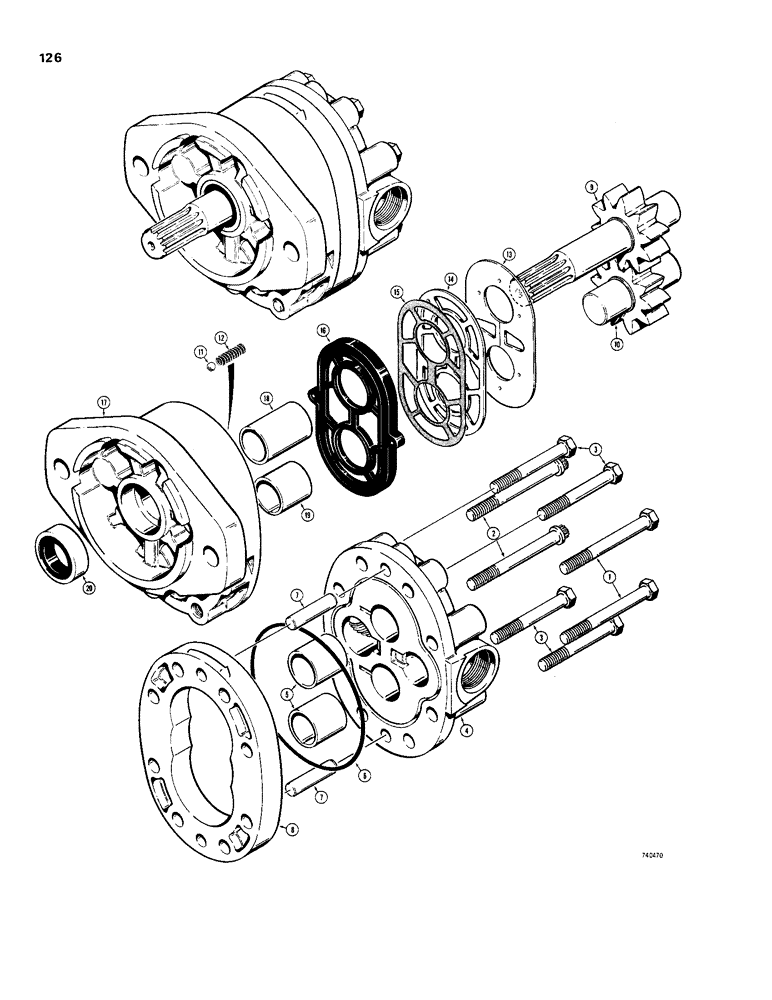

Запчасти Case IH 1830 (126) - D61905 HYDRAULIC EQUIPMENT PUMP, CESSNA NO. 24303-RAD (35) - HYDRAULIC SYSTEMS

D61905

PUMP

hydraulic, Includes: Ref. 1 - 20

1шт.

1

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

2

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

BOLT ferry cap, 12 point, 5/16"- 18 NC x 2-1/2", grade 8

2шт.

3

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

4

N6036

PLATE

COVER rear, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING cover

2шт.

6

F30415

O-RING,3" ID

SEAL O-ring

1шт.

Part of Seal Kit P/N D77554

1шт.

7

D61926

PIN dowel

2шт.

8

D61923

HOUSING

BODY center

1шт.

9

D61925

GEAR

AND SHAFT drive

1шт.

10

D61924

GEAR

idler

1шт.

11

211-306

BALL,7/32" Dia

steel

1шт.

Part of Seal Kit P/N D77554

1шт.

12

F9883

SPRING

ball pressure

1шт.

Part of Seal Kit P/N D77554

1шт.

13

D77645

DIAPHRAGM

1шт.

Part of Seal Kit P/N D77554

1шт.

14

D77553

GASKET

backup

1шт.

Part of Seal Kit P/N D77554

1шт.

15

H262477

GUARD

PROTECTOR gasket

1шт.

Part of Seal Kit P/N D77554

1шт.

16

D61922

SEAL

diaphragm

1шт.

Part of Seal Kit P/N D77554

1шт.

17

R33009

COVER

front, mounting, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING cover, long

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING cover, short

1шт.

20

F11406

SEAL

shaft

1шт.

Part of Seal Kit P/N D77554

1шт.

D77554

SEAL

KIT, Includes: Ref. 6, 11, 12, 13, 14, 15, 16 and 20

1шт.
