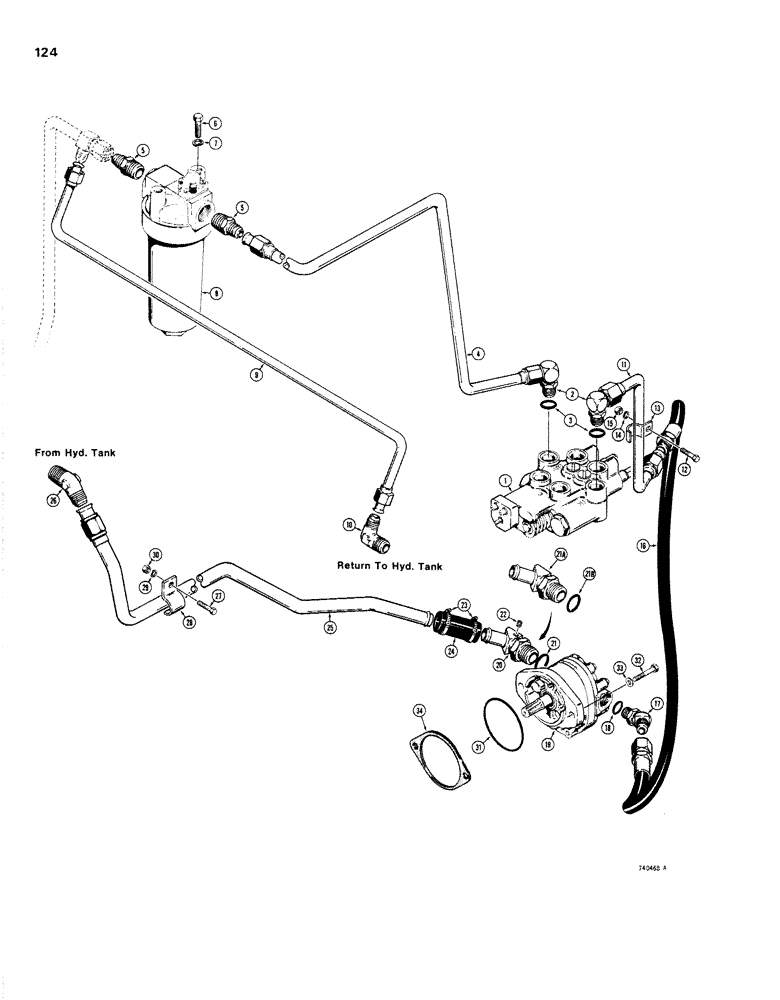

Запчасти Case IH 1830 (124) - BASIC EQUIPMENT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE equipment, two spool, see Fig.148

1шт.

2

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degrees, male, adjustable, included Ref. 3.

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL O-ring

1шт.

4

D61404

TUBE

, Serial Range: valve-filter

1шт.

5

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

CONNECTOR straight, male

2шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

D64076

FILTER

oil, return, parts list Fig.128

1шт.

8

D82367

FILTER

oil, return, parts list Fig.128

1шт.

9

D64072

TUBE

filter to hydraulic tank

1шт.

10

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

90 degrees, male

1шт.

11

D60455

TUBE

at, Serial Range: valve,-pump

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

tube

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

1шт.

16

D61392

HOSE

to pump, at pump, 18", 457.2 mm, long

1шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degrees, male, adjustable, Incl. Ref 18.

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL O-ring

1шт.

19

D61905

PUMP

equipment, parts list Fig.126

1шт.

20

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 45", special, included Ref. 21.

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL O-ring

1шт.

21a

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 45 degrees, adjustable, hose stem, included Ref. 21B.

1шт.

21b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL O-ring

1шт.

22

221-849

PLUG,Hex Soc, 1/8"-27

square socket head, 1/8" NPTwith D61389 elbow

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

24

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

low pressure, 1" ID x 3-1/2", 25.4 mm ID x 88.9 mm, long

1шт.

25

D61810

TUBE

, Serial Range: tank-pump

1шт.

26

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

45 degrees, male

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

28

D55880

CLAMP

tube

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

1шт.

31

D61908

O-RING

SEAL O-ring, pump

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

32

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS, 3/8" - 16 NC x 1-3/8"

2шт.

33

D61910

WASHER

flat, special

2шт.

34

D71301

GASKET

pump mount, if used

1шт.

D73636

GASKET KIT

KIT, Includes: Ref. 31, see Figures 88, 108, 112 and 116

1шт.
