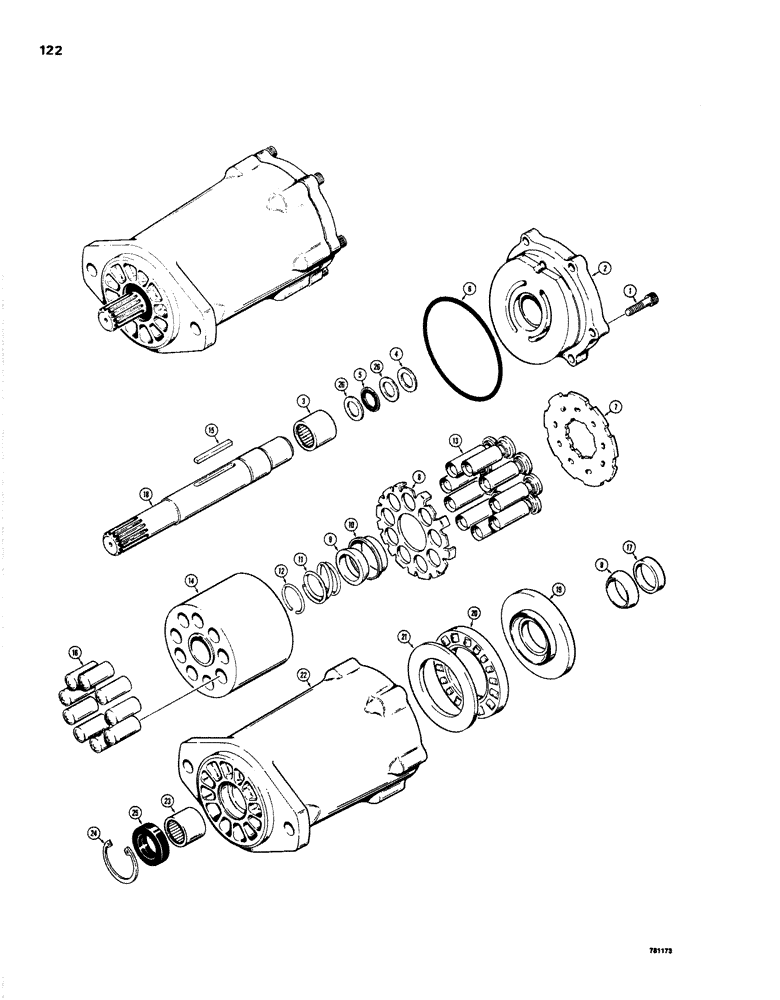

Запчасти Case IH 1830 (122) - D80245 HYDROSTATIC MOTOR, CESSNA NO. 74624-DAB (35) - HYDRAULIC SYSTEMS

D80245

MOTOR, HYDRAULIC

MOTOR hydraulic, included Ref. 1 through 26.

2шт.

DR80245

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

DC80245

CORE-MOTOR HYDRAULIC

Return Number Hydraulic Motor

2шт.

1

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex socket head, 5/8" - 18 NF x 1"

6шт.

D80511

PLATE

ASSEMBLY back, included Ref. 2 and 3.

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE back

1шт.

3

D80554

NEEDLE BEARING CAGE

BEARING plate

1шт.

4

D63333

WASHER, THRUST

SPACER race, .031, .79 mm, thick, if used

1шт.

5

D63334

THRUST BEARING,0.569" ID x 0.99" OD x 0.0781"

BEARING thrust

1шт.

6

D63347

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

SEAL O-ring

1шт.

7

D63342

PLATE

connector

1шт.

8

D63339

LARGE PLATE

SPIDER

1шт.

9

D63338

PIVOT

spider

2шт.

10

D75512

TUBE

PILOT spider and connector plate

1шт.

11

D75822

SPRING

piston

1шт.

12

D63346

RING

retaining

1шт.

13

D61944

PISTON

kit, set of 9

1шт.

14

D63344

BLOCK

piston

1шт.

15

D63340

KEY

1/4" x 3/16" x 2"

1шт.

16

D61945

PACKAGE

PISTON kit, set of 9

1шт.

17

D63341

BUSHING

SPACER pivot

1шт.

18

D80509

DRIVE SHAFT

SHAFT drive

1шт.

19

D80508

RACE

ASSEMBLY piston

1шт.

20

D63332

THRUST BEARING,2.267" ID x 3.845" OD x 0.375"

BEARING thrust

1шт.

21

D63331

BEARING WASHER,2.375" ID x 40613" OD x 0.156"

RACE bearing

1шт.

D80510

HOUSING

ASSEMBLY motor, included Ref. 22 and 23.

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

23

D80554

NEEDLE BEARING CAGE

BEARING housing

1шт.

24

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

25

D63349

SEAL

shaft

1шт.

26

D80512

WASHER, THRUST

RACE thrust, .126", 3.20 mm

2шт.
