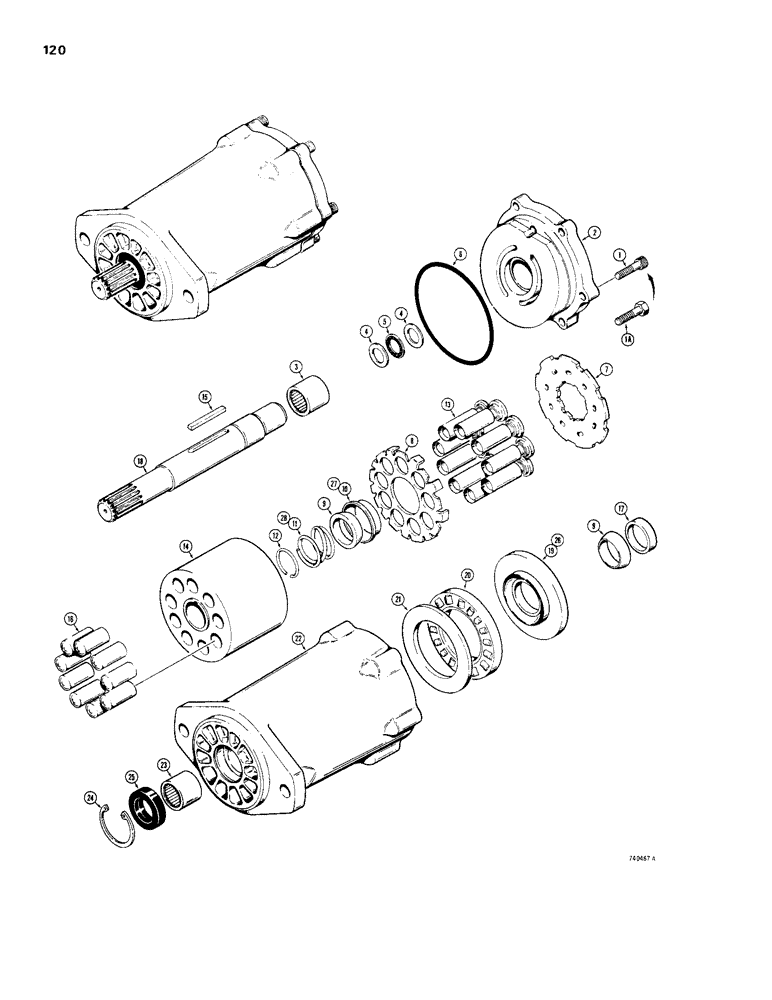

Запчасти Case IH 1830 (120) - D60104 HYDROSTATIC MOTOR, CESSNA NO. 74614-DAM (35) - HYDRAULIC SYSTEMS

D60104

MOTOR, ELECTRIC

MOTOR hydraulic, order D80245 for service, included Ref. 1 through 28.

2шт.

1

61-516

HEX SOC SCREW,5/16"-18 x 1"

BOLT hex, socket head 5/16" - 18 NC x 1", if used

6шт.

1a

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

D63345

PLATE

ASSEMBLY back, included Ref. 2 and 3.

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE back

1шт.

3

G10420

NEEDLE BEARING

BEARING plate

1шт.

4

D63333

WASHER, THRUST

RACE thrust

2шт.

5

D63334

THRUST BEARING,0.569" ID x 0.99" OD x 0.0781"

BEARING thrust

1шт.

6

D63347

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

SEAL O-ring

1шт.

7

D63342

PLATE

connector

1шт.

8

D63339

LARGE PLATE

SPIDER plate and pistons

1шт.

9

D63338

PIVOT

spider

2шт.

10

D63343

GUIDE

PILOT spider and connector plate, before motor sn 528

1шт.

Refs. 26, 27, and 28 may be used to replace Refs. 10, 11, and 19. It is important to use all three new parts if replacing old parts. Any combination of old and new parts will work properly.

1шт.

11

D63348

SPRING

piston, before motor, sn 528

1шт.

Refs. 26, 27, and 28 may be used to replace Refs. 10, 11, and 19. It is important to use all three new parts if replacing old parts. Any combination of old and new parts will work properly.

1шт.

12

D63346

RING

retaining

1шт.

13

D61944

PISTON

kit, set of 9

1шт.

14

D63344

BLOCK

piston

1шт.

15

D63340

KEY

1/4" x 3/16" x 2"

1шт.

16

D61945

PACKAGE

PISTON kit, set of 9

1шт.

17

D63341

BUSHING

SPACER pivot

1шт.

18

D63336

SHAFT

drive

1шт.

19

D63335

BEARING, CONE

RACE ASSEMBLY piston, before motor sn 528

1шт.

Refs. 26, 27, and 28 may be used to replace Refs. 10, 11, and 19. It is important to use all three new parts if replacing old parts. Any combination of old and new parts will work properly.

1шт.

20

D63332

THRUST BEARING,2.267" ID x 3.845" OD x 0.375"

BEARING thrust

1шт.

21

D63331

BEARING WASHER,2.375" ID x 40613" OD x 0.156"

RAC bearing

1шт.

D63337

HOUSING

ASSEMBLY motor, included Ref. 22 and 23.

1шт.

700728299R

REMAN-HYD MOTOR

1830, Reman for New P/N D63337

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

23

G10420

NEEDLE BEARING

BEARING housing

1шт.

24

NLS

NO LONGER SERVICED

Ring, Snap, 1.625", Int, #162

1шт.

25

D63349

SEAL

shaft

1шт.

26

D75511

RACE

ASSEMBLY piston, motor sn 528 and after

1шт.

Refs. 26, 27, and 28 may be used to replace Refs. 10, 11, and 19. It is important to use all three new parts if replacing old parts. Any combination of old and new parts will work properly.

1шт.

27

D75512

TUBE

PILOT spider and connector plate, motor sn 528 and after

1шт.

Refs. 26, 27, and 28 may be used to replace Refs. 10, 11, and 19. It is important to use all three new parts if replacing old parts. Any combination of old and new parts will work properly.

1шт.

28

D75822

SPRING

piston, motor sn 528 and after

1шт.

Refs. 26, 27, and 28 may be used to replace Refs. 10, 11, and 19. It is important to use all three new parts if replacing old parts. Any combination of old and new parts will work properly.

1шт.
