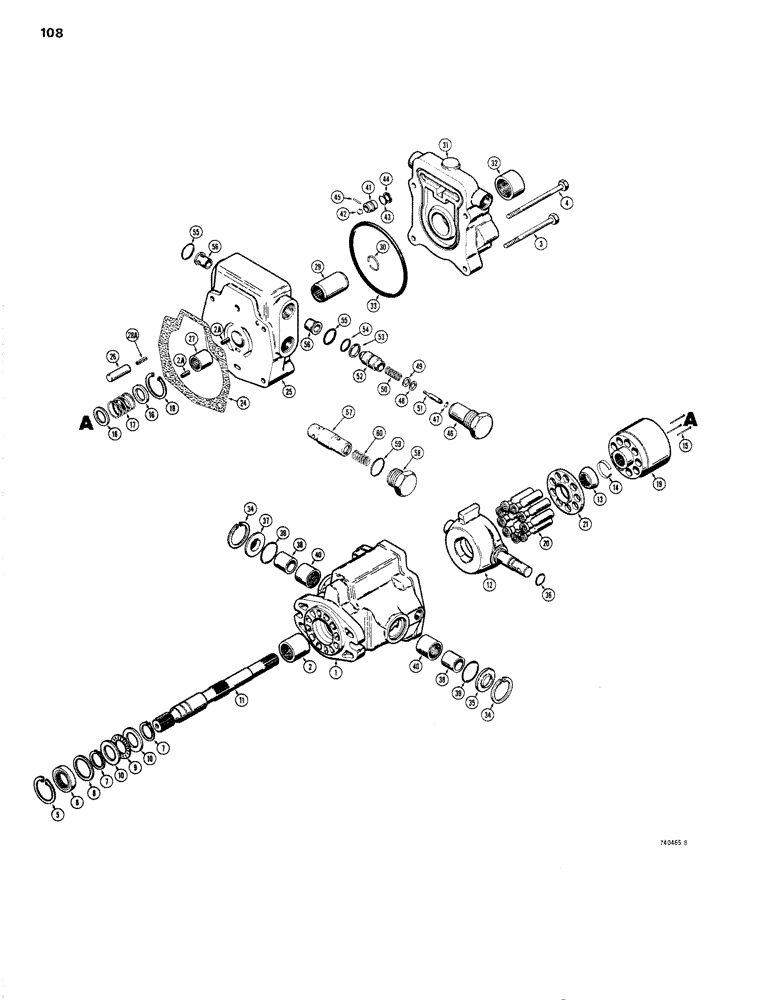

Запчасти Case IH 1830 (108) - D61906 VARIABLE DISPLACEMENT PUMP, CESSNA NO. 70142-DAC (35) - HYDRAULIC SYSTEMS

D61906

PUMP

variable displacement, RH drive, included Ref. 1 through 40, P/N D66375, P/N D63319, P/N D61965 and P/N D61966.

1шт.

When components of D61906 are no longer available, must order replacement pump 371264A1. Vendor no longer makes D61906 per ECN H999024.

1шт.

1

D73654

HOUSING

front, included Ref. 2.

1шт.

2

F51079

NEEDLE BEARING

BEARING housing

1шт.

2a

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

2шт.

3

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5/16"-18 NC x 3-1/4"

2шт.

4

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS, 5/16" - 18 NC x 3-3/4"

2шт.

5

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

6

D73666

SEAL

shaft

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

7

B18208

SNAP RING,#100, Ext

2шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

8

D63314

WASHER

seal

1шт.

9

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST

1шт.

10

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

RACE thrust

2шт.

11

D63320

SHAFT

drive, 8.4" long, 15 teeth

1шт.

12

D63318

PLATE

SWASH PLATE RH

1шт.

13

D66372

PIVOT

spider

1шт.

Part of Piston Block Kit P/N D66375

1шт.

REF

INSTRUCTION

PISTON BLOCK ASSEMBLY, use D66375 kit, included Ref. 14 through 19.

1шт.

Part of Piston Block Kit P/N D66375

1шт.

14

D61974

PIN

keeper

1шт.

15

D61971

PIN,2.03mm OD x 25.4mm L

loading

3шт.

16

D61972

WASHER

spring

2шт.

17

D63316

SPRING

loading

1шт.

18

A30975

SNAP RING,1.188", Int, #118

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

19

NSS

NOT SOLD SEPARAT

BLOCK piston

1шт.

20

D61946

PISTON

KIT, set of 9

1шт.

21

D61969

U-JOINT SPIDER

SPIDER swash plate

1шт.

Part of Piston Block Kit P/N D66375

1шт.

22

RESERVED

1шт.

23

RESERVED

1шт.

24

61977

GASKET HOUSING

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

D61965

PLATE

BACKING PLATE ASSEMBLY, included Ref. 25 through 28A.

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE backing

1шт.

26

NSS

NOT SOLD SEPARAT

STOP cam

1шт.

27

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING shaft

1шт.

28

RESERVED

1шт.

28a

138-174

LOCK PIN,3/8" x 1 1/2", Slotted

PIN, 3/8" x 1 1/2", Slotted

1шт.

29

D63317

COUPLING, BREAK AWAY

COUPLER shaft

1шт.

30

D63321

RING

lock

1шт.

D63319

TUBE NUT

ADAPTER ASSEMBLY tandem, included Ref. 31 and 32.

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING adapter

1шт.

32

D63322

ROLLER BEARING,Needle, 31.75mm ID x 38.1mm OD x 19.05mm W

BEARING shaft

1шт.

33

A58571

O-RING,4.487" ID x 4.693" OD

SEAL O-ring, sub to 238-7157

1шт.

34

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, 1.50", Int, #150

2шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

35

D63309

BUSHING

SLEEVE trunnion

1шт.

36

D63313

O-RING,5" ID

SEAL O-ring

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

37

D61975

COVER

trunnion

1шт.

38

D61963

BEARING, CONE

RACE inner

1шт.

39

D26819

O-RING,1.299" ID x 1.505" OD

SEAL O-ring

2шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

40

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING needle

2шт.

D61966

VALVE

check, included Ref. 41 through 45.

2шт.

41

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

42

211-309

BALL

steel, 5/16" dia.

1шт.

43

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

SEAL O-ring

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

44

D54861

BACK-UP RING

WASHER backup

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

45

138-37

LOCK PIN,3/32" x 1/2", Slotted

PIN, 3/32" x 1/2", Slotted

1шт.

REF

INSTRUCTION

VALVE ASSEMBLY relief, with long plug, use D66374 AND D80497, included Ref. 46 through 56.

2шт.

46

NSS

NOT SOLD SEPARAT

CARTRIDGE valve

1шт.

47

RING retaining, no longer required

1шт.

48

H251017

SHIM,.015" Thk

1шт.

49

H250993

SHIM,.005" Thk

1шт.

50

NSS

NOT SOLD SEPARAT

SPRING relief

1шт.

51

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

52

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

53

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER backup

1шт.

54

D63328

O-RING

SEAL O-ring

1шт.

55

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL O-ring

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

56

D63311

SEAL

SEAT valve

1шт.

57

D66374

VALVE

ASSEMBLY, used with short plug, if used

2шт.

D80497

PLUG

ASSEMBLY, used with item 57, included 58, 59 and 60.

2шт.

58

NSS

NOT SOLD SEPARAT

PLUG

1шт.

59

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

plug

1шт.

Part of Repair Kit P/N D73636, see Figures 088, 106 through 116 and 124

1шт.

60

D80498

SPRING

internal, plug

1шт.

D66375

PISTON

KIT piston block, included Ref. 13 and 21.

1шт.

D73636

GASKET KIT

KIT repair, seal and pump to pump, Includes: Ref. 5, 6, 7, 18, 24, 34, 36, 39, 43, 44, 55 and 59, also see Figures 088, 106, 112, 116 and 124

1шт.
