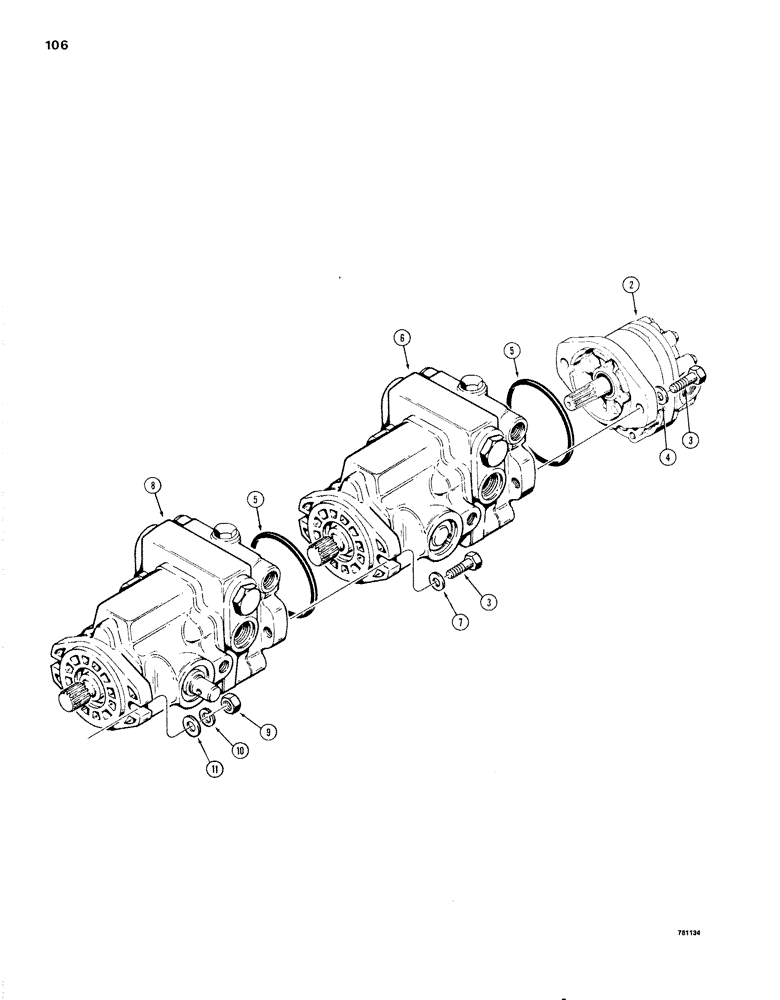

Запчасти Case IH 1830 (106) - TANDEM PUMP ASSEMBLY AND MOUNTING (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY tandem, not shown assembled, included Ref. 2 through 11.

1шт.

2

D61905

PUMP

equipment, parts list Fig. 126

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS, 3/8" - 16 NC x 1-1/2"

4шт.

4

D61910

WASHER

flat

2шт.

5

D61908

O-RING

2шт.

Part of Repair Kit P/N D73636, see Figures 106 through 116 and 124

1шт.

6

REF

INSTRUCTION

PUMP variable displacement, parts list Fig. 112 and 116.

1шт.

7

D61909

WASHER

flat

2шт.

8

REF

INSTRUCTION

PUMP variable displacement, parts list Fig. 108.

1шт.

9

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

195-25

WASHER,3/8"

plain, 3/8"

2шт.

D73636

GASKET KIT

KIT repair, Includes: Ref. 5 and parts in Figures 108 through 116

1шт.

TANDEM PUMP ASSY & MOUNTING 78112-RAS

1шт.
