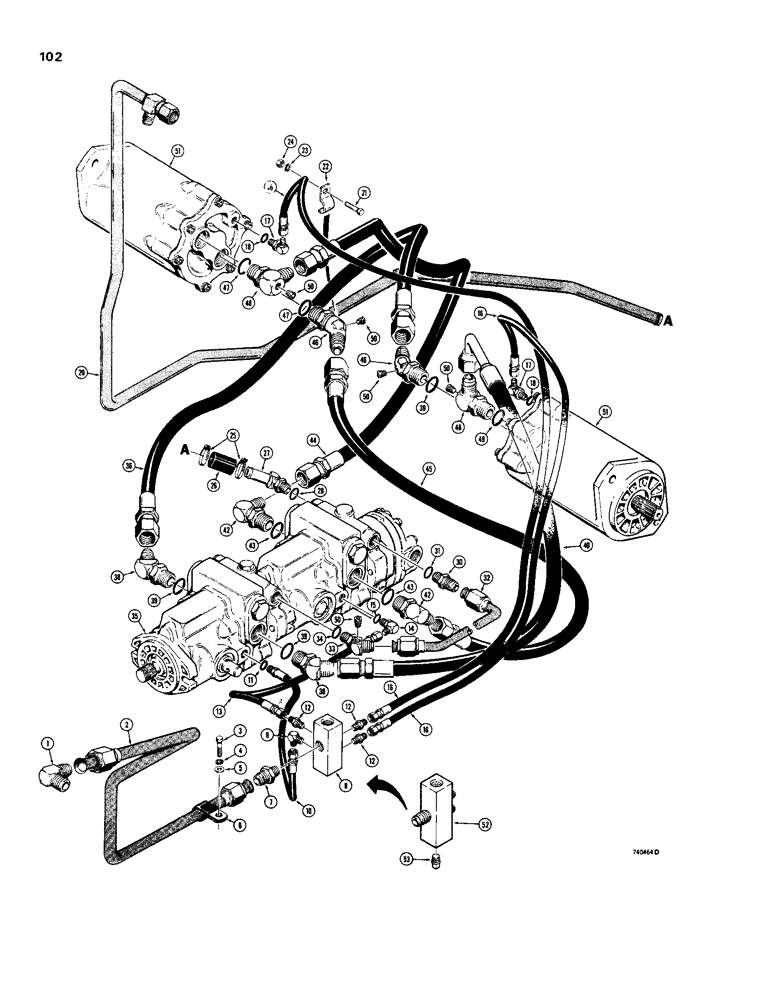

Запчасти Case IH 1830 (102) - HYDROSTATIC DRIVE HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

90 degree, male

1шт.

2

D61215

TUBE

, Serial Range: tank-manifold

1шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

195-21

WASHER,5/16"

- plain, 5/16"

1шт.

6

51200329

CLIP

CLAMP tube

1шт.

7

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR straight, male, if used

1шт.

8

D60539

MANIFOLD

drain lines, hydraulic, early production order D73337 manifold and 221-12 plug

1шт.

9

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degree, male, if used

1шт.

10

D61390

HOSE

front pump to manifold, 16", 406.4 mm, long, included Ref. 11.

1шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR straight, male, if used

3шт.

13

D61395

HOSE

middle pump to manifold, 16", 406.4 mm, long

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, male, adjustable, included Ref. 15.

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

16

D61396

HOSE

motors to manifold, 29", 736.6 mm, long

2шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, male, adjustable, included Ref. 18.

2шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

19

RESERVED

1шт.

20

D64070

TUBE

, Serial Range: filter-pump

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

tube

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

26

D24728

HOSE

low pressure, 3/4" ID x 4-1/2", 19.05 mm ID x 114.3 mm, long

1шт.

27

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW, 45 degree, adjustable, hose barb, included Ref. 28.

1шт.

29

RESERVED

1шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, included Ref 31.

1шт.

32

D61199

TUBE

, Serial Range: pump-pump

1шт.

33

D69737

FITTING

ELBOW, 45 degree, male, adjustable, included Ref. 34.

1шт.

35

REF

INSTRUCTION

PUMP tandem, parts list Fig. 106

1шт.

36

D63033

HOSE

pump to RH motor, 38", 965.2 mm, long

1шт.

37

RESERVED

1шт.

38

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45 degree, male, adjustable, included Ref. 39.

2шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL O-ring

1шт.

40

D61397

HOSE

pump to R.H. motor, 25", 635 mm long

1шт.

REF: #40 HOSE IS TO R.H. MOTOR PORT "B"

1шт.

41

RESERVED

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, male, Incl. Ref. 43. 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL O-ring

1шт.

44

D61394

HOSE

pump to LH motor, 17", 431.8 mm, long

1шт.

REF: #44 HOSE IS TO L.H. MOTOR PORT "B"

1шт.

45

D61394

HOSE

pump to LH motor, 17", 431.8 mm, long

1шт.

46

D61504

FITTING

ELBOW, 45 degrees, special, included Ref. 47.

2шт.

47

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL O-ring

1шт.

48

R30729

FITTING

ELBOW, 90 degrees, special, included Ref. 49.

2шт.

REF: #48 REPLACE BY P/N R30729 REF: S/B 6033

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL O-ring

1шт.

50

221-849

PLUG,Hex Soc, 1/8"-27

hex socket head, 1/8" NPT

5шт.

51

REF

INSTRUCTION

MOTOR hydraulic, parts list Fig. 120 and 122

2шт.

52

D73337

MANIFOLD

drain lines, late production

1шт.

53

221-12

PLUG,Sq Hd, 1/4"-18

square head, 1/4" NPT

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.
