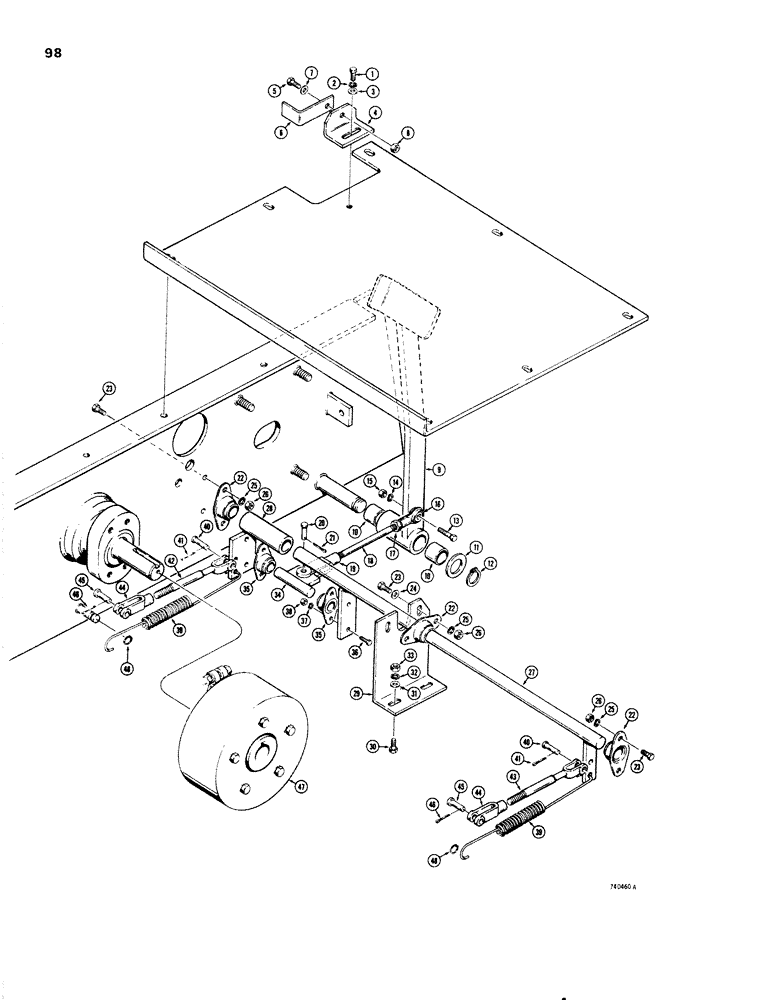

Запчасти Case IH 1830 (098) - BRAKE PEDAL AND LINKAGE (33) - BRAKES & CONTROLS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

2

92-6

LOCK WASHER,3/8"

1шт.

3

195-25

WASHER,3/8"

plain, 3/8"

1шт.

4

D61313

BRACKET brake lock

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

6

D61314

LOCK brake

1шт.

7

195-25

WASHER,3/8"

plain, 3/8"

1шт.

8

131-652

LOCK NUT,3/8"-16, GB

NUT hex, 3/8" - 16 NC

1шт.

9

D61078

PEDAL

brake, included Ref. 10.

1шт.

10

L15247

BUSHING

bronze

2шт.

11

195-45

WASHER,3/4"

1шт.

12

D95097

RING, SNAP

RING retaining

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS, 3/8" - 16 NC x 1-1/2"

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

1шт.

16

D59922

BALL JOINT

female

1шт.

17

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8" - 24 NF

1шт.

18

D60834

ROD

, Serial Range: pedal-shaft

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE clevis, female

1шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

21

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

22

L48412

FLANGED BEARING

BEARING shaft

3шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

24

195-25

WASHER,3/8"

plain, 3/8"

2шт.

25

92-6

LOCK WASHER,3/8"

6шт.

26

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

6шт.

27

D60828

SHAFT

cross

10шт.

28

D60829

LEVER

equalizer

1шт.

29

D61312

PLATE ASSY.

PLATE shaft support

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

195-25

WASHER,3/8"

plain, 3/8"

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

34

D60835

BAR equalizer, before tractor sn 9829258

1шт.

34

D69615

BAR

equalizer, tractor sn 9829258 and after

1шт.

35

L11566

BEARING

ear

2шт.

36

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

25-104

NUT,1/4"-20, G5

4шт.

39

D63988

SPRING

pedal return

2шт.

40

141-2

CLEVIS PIN,1/4" x .770"

PIN clevis

2шт.

41

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

42

D61443

ROD

brake, LH

1шт.

43

D61442

ROD

brake, RH

1шт.

44

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS yoke

2шт.

45

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

46

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

47

REF

INSTRUCTION

BRAKE AND DRUM see Fig. 100

2шт.

48

C14652

RING

retaining

2шт.
