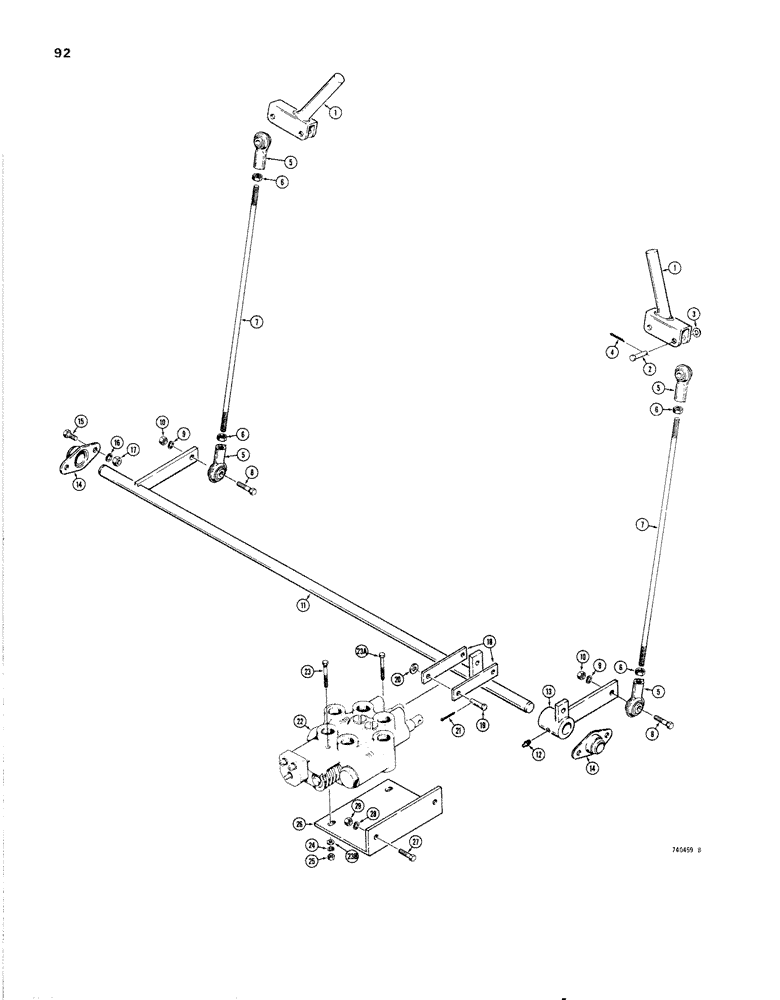

Запчасти Case IH 1830 (092) - EQUIPMENT CONTROLS (14) - MAIN GEARBOX & DRIVE

1

REF

INSTRUCTION

HANDLE control, see Fig. 88 for proper handle

2шт.

2

141-12

CLEVIS PIN,3/8" x 1 5/16"

PIN clevis

2шт.

3

195-25

WASHER,3/8"

plain, 3/8"

2шт.

4

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

5

D59922

BALL JOINT

female

4шт.

6

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8" - 24 NF

4шт.

7

D60525

ROD

lever

2шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

11

D59938

SHAFT

lever

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight

1шт.

13

D59933

CRANK

BELL CRANK lever

1шт.

14

L48412

FLANGED BEARING

BEARING shaft support

2шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

18

D59934

LINK

, Serial Range: lever-valve

4шт.

19

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN clevis

4шт.

20

195-18

WASHER,1/4"

plain, 1/4"

4шт.

21

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

4шт.

22

REF

INSTRUCTION

VALVE hydraulic, 2 spool, see Fig. 148

1шт.

23

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

23a

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

23b

195-21

WASHER,5/16"

- plain, 5/16"

2шт.

24

REF

INSTRUCTION

WASHER lock, 5/16", use 131-651 nut

2шт.

25

REF

INSTRUCTION

NUT hex, 5/16", use 131-651 nut

2шт.

25

131-651

NUT,5/16"-18, GB

NUT hex, self lock, 5/16" - 18 NC

2шт.

26

D60089

BRACKET

PLATE valve mounting

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.
