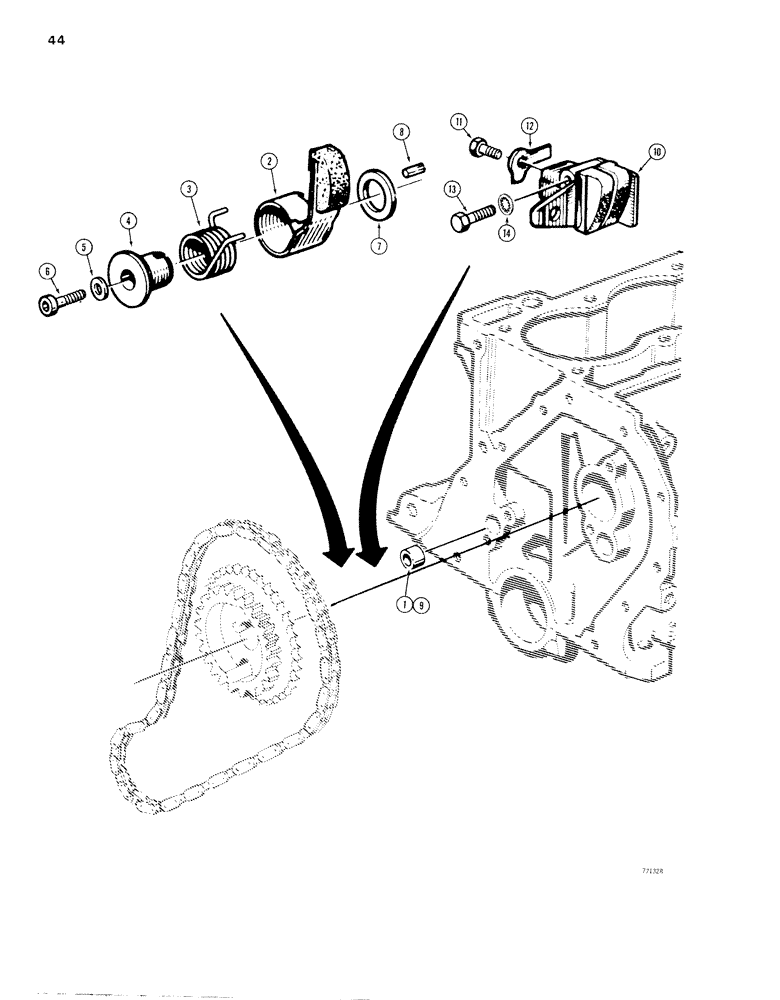

Запчасти Case IH 1830 (044) - CHAIN TENSIONERS, MECHANICAL CHAIN TENSIONER (10) - ENGINE

1

D87042

PLUG

1шт.

2

D62900

TENSIONER

PAD - tensioner

1шт.

3

D75949

SPRING

1шт.

4

D75948

SPOOL

1шт.

5

D62773

LOCK WASHER

WASHER - lock

1шт.

6

D75947

SCREW

1шт.

7

D75950

WASHER - special

1шт.

8

D75951

PIN

1шт.

9

D62668

FILTER

- oil

1шт.

10

D75917

TENSIONER

- hydraulic

1шт.

REF: #10 COMPLETE AS IN THE SERVICE MANUAL

1шт.

11

D62655

BOLT

- special, hydraulic chain tensioner.

1шт.

12

D62656

LOCK

- chain tension, hydraulic chain tensioner.

1шт.

13

D62760

HHCS - 6 mm x 30 mm, hydraulic chain tensioner.

2шт.

14

D62790

WASHER - lock, internal, 6 mm, hydraulic chain tensioner.

2шт.
