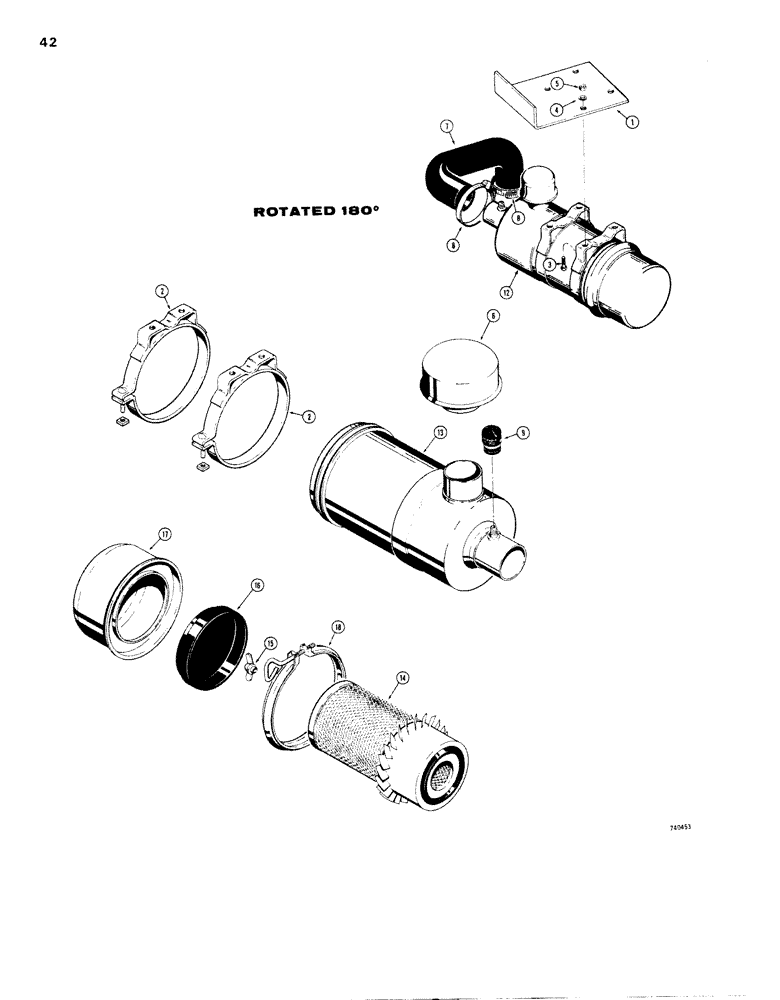

Запчасти Case IH 1830 (042) - D55203 AIR CLEANER (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

BRACKET air cleaner mounting

1шт.

2

D43713

BAND

air cleaner mounting

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

4шт.

6

D22685

CAP

inlet, air cleaner

1шт.

7

D63541

INTAKE AIR HOSE,2.00" ID x 9.20", SAE 10R4 CLASS SC, SAE 20R4 CLASS R

Air Cleaner to Manifold 2.00" ID x 9.20", SAE 10R4 CLASS SC, SAE 20R4 CLASS R

1шт.

7

D66820

INTAKE AIR HOSE,2.00" ID x 9.20", SAE 20R4 CLASS R

Air Cleaner to Manifold 2.00" ID x 9.20", SAE 20R4 CLASS R

1шт.

8

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

9

A59569

INDICATOR

air restriction, filter

1шт.

10

RESERVED

1шт.

11

RESERVED

1шт.

12

D55203

CLEANER ASSY.

AIR CLEANER ASSEMBLY, included Ref. 13 through 18.

1шт.

13

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

14

D48198

AIR CLEANER

ELEMENT filter

1шт.

15

D78354

WING NUT

NUT AND GASKET ASSEMBLY winged

1шт.

REF: #15 D78354 NUT & GASKET ASSY INCLUDES THE D37976 GASKET

1шт.

16

D48200

BAFFLE

air cleaner

1шт.

17

D48201

CUP

air cleaner

1шт.

18

D48199

CLAMP

, Serial Range: cup-body

1шт.

REF: #18 BOLT P/N L30338 IS USED ALONG WITH THE 25-225 NUT ON AIR CLEANER CLAMP

1шт.
