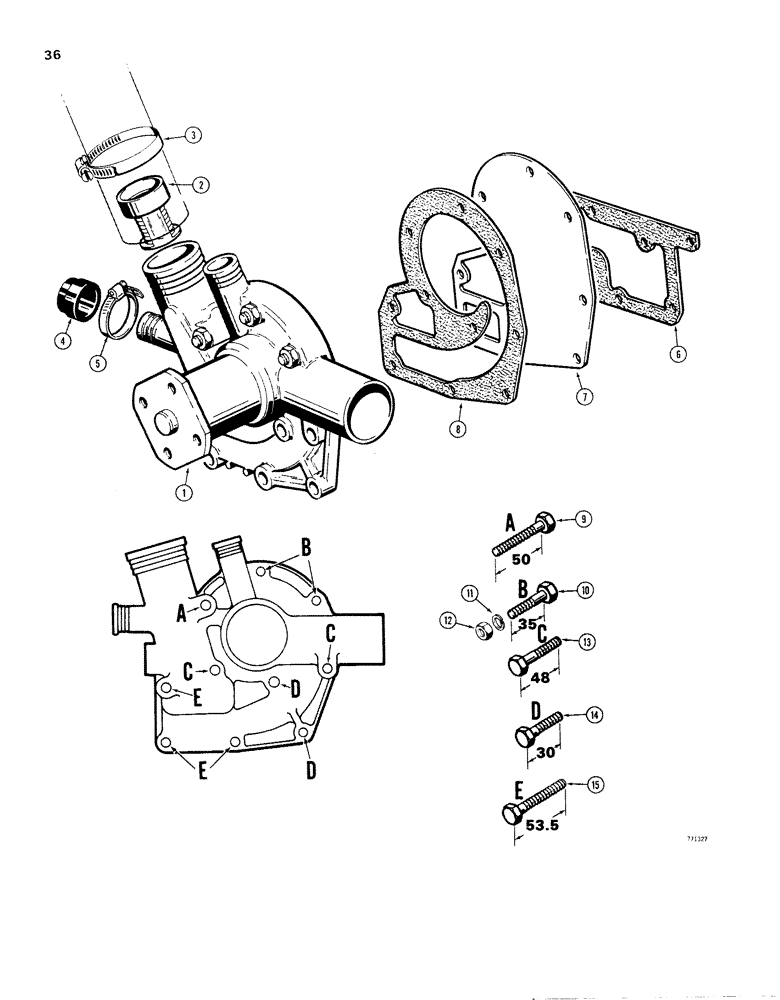

Запчасти Case IH 1830 (036) - ENGINE SN 2707 AND AFTER WATER PUMP AND THERMOSTAT (10) - ENGINE

1

D73715

PUMP, WATER

PUMP water

1шт.

2

N7756

THERMOSTAT

1шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

thermostat retaining #28, 1.31/2.25 Type F Worm

1шт.

4

D62574

PLUG

hose

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP screw type

1шт.

6

N6919

GASKET

pump to cylinder head

1шт.

7

D87002

LARGE PLATE

PLATE pump back

1шт.

8

N6920

GASKET

, Serial Range: plate-body

1шт.

9

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

1шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

11

D62773

LOCK WASHER

WASHER lock, 6 mm

7шт.

12

D62781

NUT

M6 x 1

2шт.

13

D87003

BOLT

HHCS, 6 mm x 48 mm

2шт.

14

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

15

D87004

BOLT

HHCS, 6 mm x 53.5 mm

3шт.
