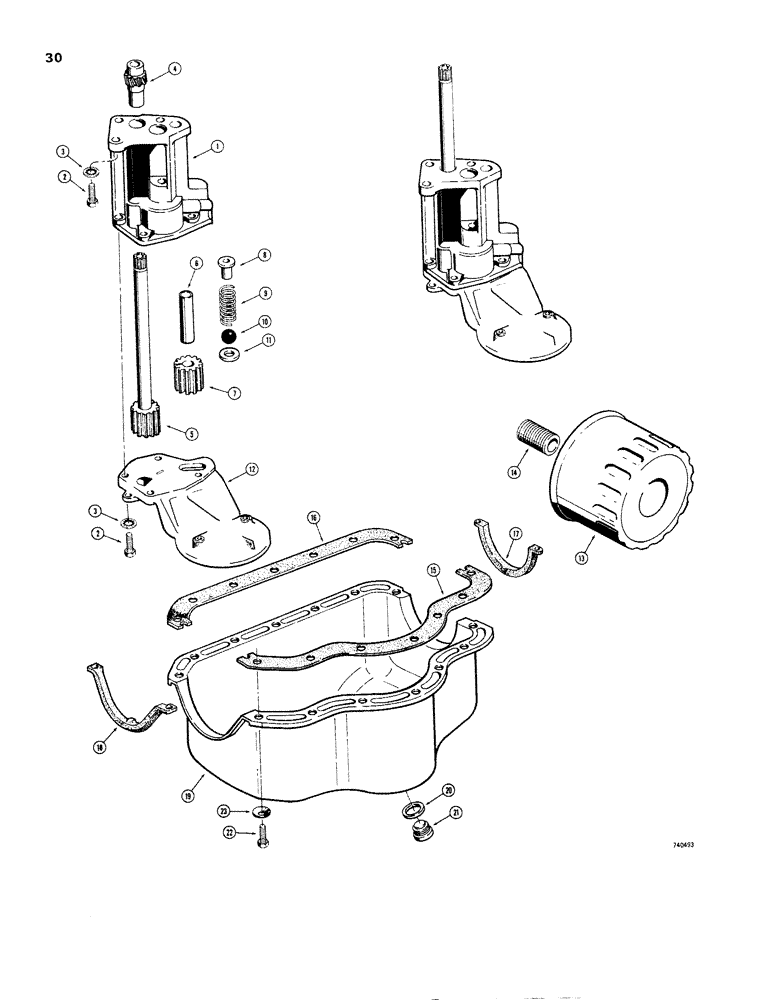

Запчасти Case IH 1830 (030) - ENGINE SN 2707 AND AFTER OIL PUMP, FILTER AND OIL PAN (10) - ENGINE

D62756

PUMP, ENGINE OIL

PUMP ASSEMBLY oil, included Ref. 1 through 12; Pump Assy Does Not Include D62565. This Part Is No Longer Available And Must Be Salvaged From The Pump Being Replaced

1шт.

1

NSS

NOT SOLD SEPARAT

BODY pump

1шт.

2

D62759

HHCS, 6 mm x 20 mm

7шт.

3

D62788

WASHER lock, internal, 6 mm

1шт.

4

D62565

GEAR

drive, pump; This Part Is No Longer Available And Must Be Salvaged From The Pump Being Replaced

1шт.

5

D62628

SHAFT drive

1шт.

6

D87041

STUD

idler gear

1шт.

7

D62566

GEAR idler

1шт.

8

D62600

GUIDE spring

1шт.

9

D62583

SPRING relief

1шт.

10

D62625

BALL relief

1шт.

11

D62582

SEAT ball

1шт.

12

D62685

STRAINER oil

1шт.

13

D62845

ENGINE OIL FILTER

FILTER oil, engine

1шт.

14

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE pipe, 3/4" x 1-3/8"

1шт.

D80531

SEAL KIT

KIT gasket, included Ref. 15 through 18.

1шт.

15

D75901

GASKET

pan, curved side

1шт.

16

D75894

GASKET

pan, straight side

1шт.

17

N7755

GASKET

pan, bearing

1шт.

REF 17 N7755 ORDER D80531 KIT

1шт.

18

N6924

GASKET

pan, chain cover

1шт.

D75895

PAN ASSY.

PAN ASSEMBLY oil, included Ref. 19 through 21.

1шт.

19

NSS

NOT SOLD SEPARAT

PAN oil

1шт.

20

N7047

GASKET

drain plug

1шт.

21

N7048

PLUG

drain

1шт.

22

D75897

BOLT special

14шт.

23

D75898

WASHER

lock, internal

14шт.

IF DOESNT FIT, USE N13323 ADAPTER WITH D62845 FILTER. RENAULT CHANGED THEIR THREAD SIZE FROM 19MM TO 20MM. NEW ENGINE N13650, NEEDS THE ADAPTER TO USE THE STD FILTER WHICH IS 19MM. N13323 IS RENAULT 7700725923/D3085-194

1шт.
