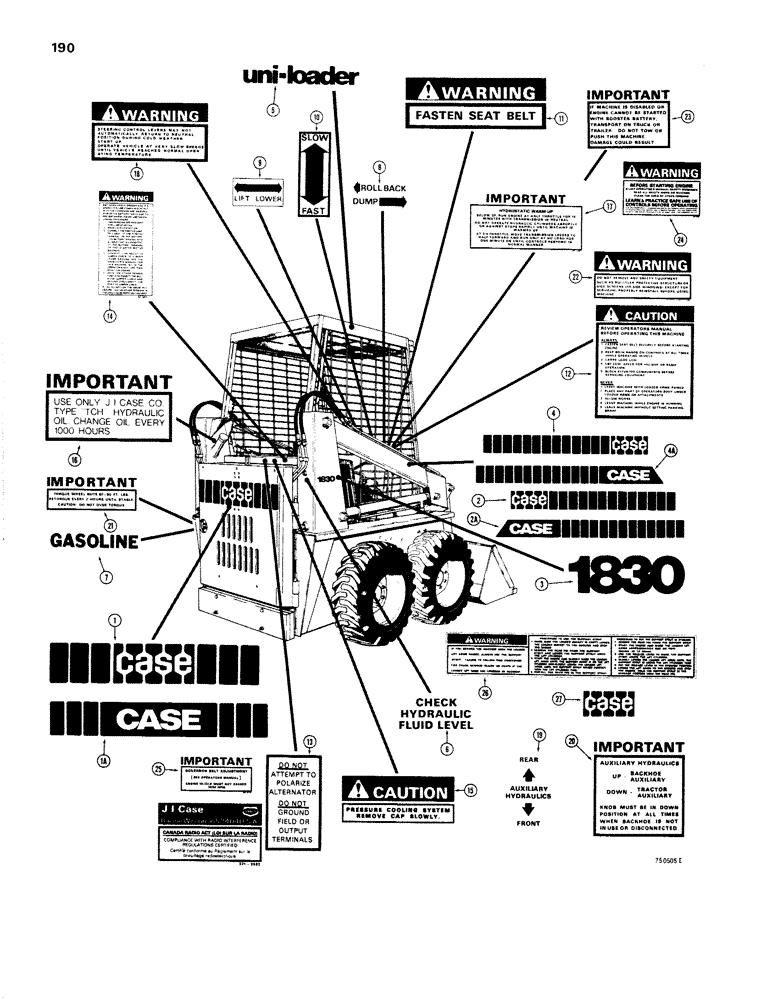

Запчасти Case IH 1830 (190) - DECALS LATE PRODUCTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

D71500

KIT

decal, included Ref. 1 through 26.

1шт.

1

321-3076

DECAL

"Case", 6", 152.4 mm, high, used before tractor sn 9844120, no longer available, order 321-5114

1шт.

No longer part of kit, order as individual parts only.

1шт.

1a

321-5114

DECAL

"Case", 4-1/2", 112 mm, high, used on tractor sn 9844120 and after

1шт.

2

321-3111

DECAL

"Case", 4", 101.6 mm, high, LH, used before tractor sn 9844120

1шт.

No longer part of kit, order as individual parts only.

1шт.

2a

321-5113

DECAL

"Case", 4-1/2", 112 mm, high, used on tractor sn 9844120 and after

1шт.

3

321-3152

DECAL

1830

2шт.

4

321-3110

DECAL

"Case", 4", 101.6 mm, high, RH, used before tractor sn 9844120

1шт.

No longer part of kit, order as individual parts only.

1шт.

4a

321-5112

DECAL

"Case", 5-3/8", 137 mm, high, used on tractor sn 9844120 and after

1шт.

5

321-3150

DECAL

Uni-Loader

2шт.

6

321-2733

DECAL

Hydraulic Fluid

1шт.

7

321-0018

DECAL Gasoline

1шт.

8

321-2506

DECAL

Rollback - Dump

1шт.

9

321-2509

DECAL

Lift - Lower

1шт.

10

321-2510

DECAL

Slow - Fast

1шт.

11

321-3060

DECAL

warning, seat belt

1шт.

12

321-3059

DECAL

caution, operation of machine

1шт.

13

321-1061

DECAL

battery instructions

1шт.

14

321-5973

DECAL

battery instructions

1шт.

15

321-3061

DECAL

Caution, remove cap slowly

1шт.

16

321-3386

DECAL

Important, hydraulic oil specificatons

1шт.

17

321-4197

DECAL

Important, warm up

1шт.

18

321-3062

DECAL

warning, steering control levers

1шт.

19

321-2667

DECAL

auxiliary hydraulics, rear and lift

1шт.

20

321-2757

DECAL

auxiliary hydraulics, lift arm and front loader

1шт.

21

321-2973

DECAL

torque wheel nuts

2шт.

22

321-5585

DECAL

warning, ROPS removal

1шт.

REF: # 22 REPLACED BY P/N 321-5855

1шт.

23

321-3385

DECAL

Important, do not tow or push

1шт.

D55216

PAD,2" x 9"

PAD non slip, now shown

1шт.

321-3992

DECAL

Canada radio act, if used

1шт.

24

321-3705

DECAL

safety warning

1шт.

25

321-4776

DECAL

governor belt adjustment, required only on machines with belt driven governor

1шт.

26

321-6214

DECAL

warning, safety strut,' used on models with safety strut

1шт.

27

321-4739

EMBLEM

MEDALLION Case mark, used on tractor sn 9844120 and after

1шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

PALNUT medallion, not shown, used on tractor sn 9844120 and after

1шт.
