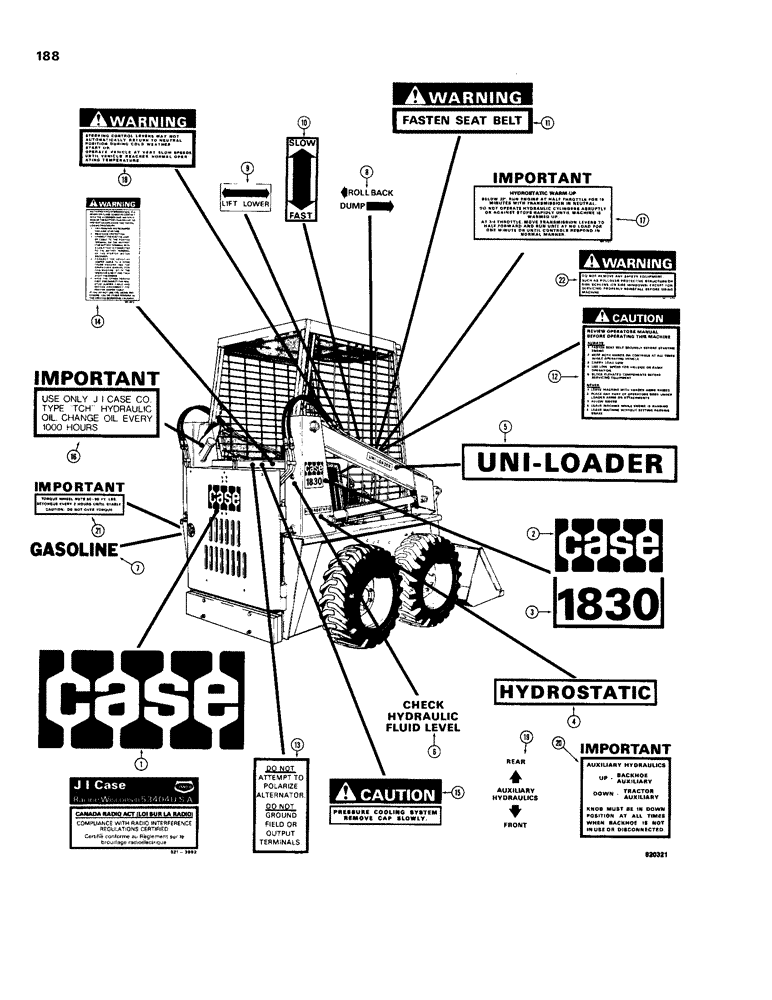

Запчасти Case IH 1830 (188) - DECALS EARLY PRODUCTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

D63376

KIT

decal, included Ref. 1 through 23 and P/N 321-3992.

1шт.

1

321-2427

EMBLEM

DECAL Case, 6", 152.4 mm, high

1шт.

2

321-2425

DECAL

Case, 3", 76.2 mm, high

2шт.

3

321-2639

DECAL

1830

2шт.

4

321-2060

DECAL

Hydrostatic

2шт.

5

321-2490

DECAL

Uni-loader

2шт.

6

321-2733

DECAL

Hydraulic Fluid

1шт.

7

321-0018

DECAL Gasoline

1шт.

8

321-2506

DECAL

Rollback - Dump

1шт.

9

321-2509

DECAL

Lift - Lower

1шт.

10

321-2510

DECAL

Slow - Fast

2шт.

11

321-3060

DECAL

warning, seat belt

1шт.

12

321-3059

DECAL

caution, operation of machine

1шт.

13

321-1061

DECAL

battery instructions

1шт.

14

321-5973

DECAL

battery instructions

1шт.

15

321-3061

DECAL

Caution, remove cap slowly

1шт.

16

321-3386

DECAL

Important, hydraulic oil specifications

1шт.

17

321-4197

DECAL

Important, warm up

1шт.

18

321-3062

DECAL

warning, steering control levers

1шт.

19

321-2667

DECAL

auxiliary hydraulics, rear and lift

1шт.

20

321-2757

DECAL

auxiliary hydraulics, lift arm and front loader

1шт.

21

321-2973

DECAL

torque wheel nuts

2шт.

22

321-5855

DECAL

warning, ROPS removal

1шт.

23

D55216

PAD,2" x 9"

PAD non slip, not shown

1шт.

321-3992

DECAL

Canada radio, act, if used

1шт.
