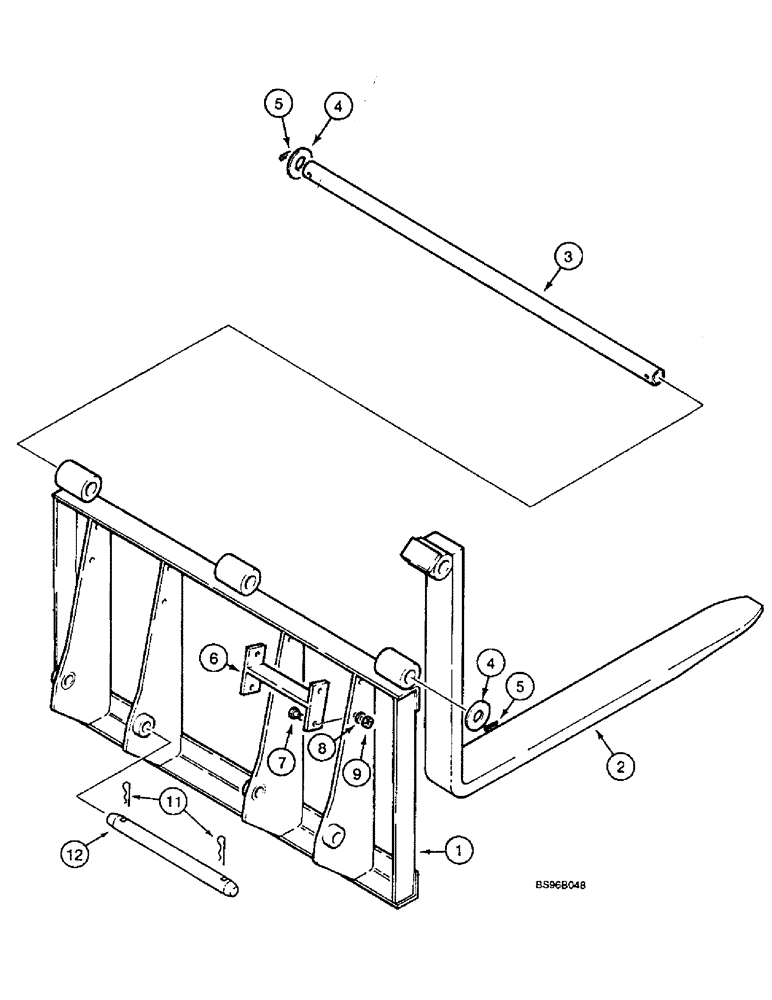

Запчасти Case IH 1825B (9-12) - PALLET FORK (09) - CHASSIS/ATTACHMENTS

1

D138991

FRAME

1шт.

2

D138986

FORK

2шт.

3

D57020

ROD

SHAFT

1шт.

4

95-11106

WASHER,1" x 2" x .134"

1-1/16 x 2 x 1/8

2шт.

5

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

6

D138882

PIN ASSY.

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

9

425-108

NUT,1/2" - 13, Gr 5

8шт.

11

1978738C1

HAIR PIN COTTER

7/16 x 3-13/16, Replaces 136-251

4шт.

12

H438549

PIN

2шт.
