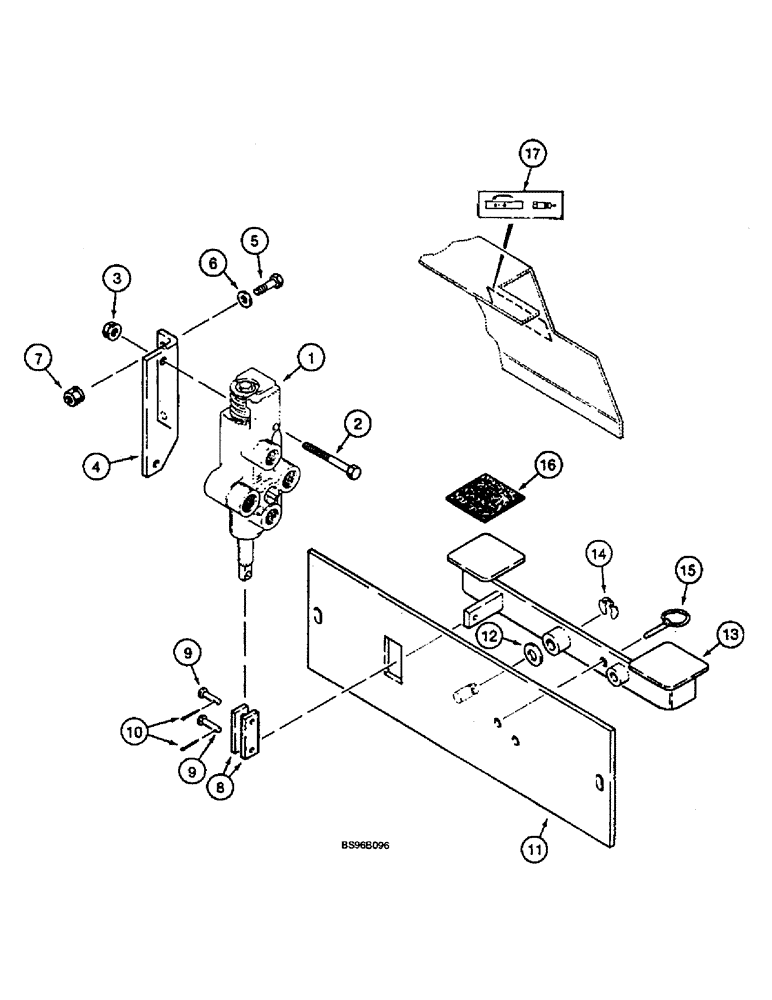

Запчасти Case IH 1825B (8-24) - CONTROLS, AUXILIARY (08) - HYDRAULICS

1

D64670

VALVE

ASSY, control, auxiliary, see Figure 8-16

1шт.

2

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

H437950

SUPPORT

BRACKET

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

8

111897A1

DRAG LINK

2шт.

9

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis 3/16 x 57/64

2шт.

10

432-48

COTTER PIN,1/16" x 1/2"

2шт.

11

H674302

LARGE PLATE

PLATE, LARGE

1шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

13

H674467

PEDAL

1шт.

14

D143415

SNAP RING,0.50” ID, Klipring

1шт.

15

D94535

PIN,9.52mm OD

1шт.

16

D55216

PAD,2" x 9"

TRIM

2шт.

17

140026A1

DECAL

1шт.
