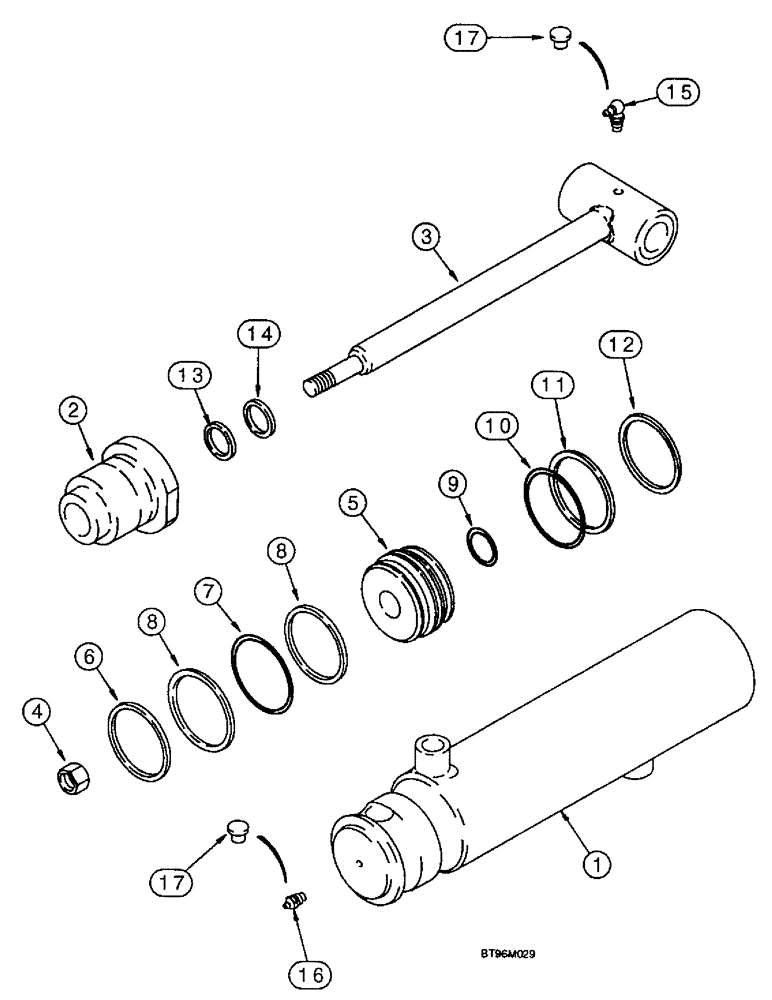

Запчасти Case IH 1825B (8-20) - CYLINDER ASSEMBLY, LOADER BUCKET (08) - HYDRAULICS

104517A1

CYLINDER ASSY.

Incl. Ref. 1 - 16

2шт.

1

110508A1

JACK BODY

TUBE

1шт.

2

108641C1

GLAND

packing

1шт.

3

110509A1

PISTON ROD

1шт.

4

231-41310

LOCK NUT,5/8"-11, GB

1шт.

5

110501A1

JACK PISTON

1шт.

110510A1

SEAL KIT

Incl. Ref. 6 - 14

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

RING

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

11

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

RING

1шт.

12

140600C1

RETAINING WIRE

RING

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.

14

532773R1

WIPER SEAL

1шт.

15

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 tpr x 3/4 in, 90°

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

17

E82545

CAP

red, German T.B.G. models

2шт.
