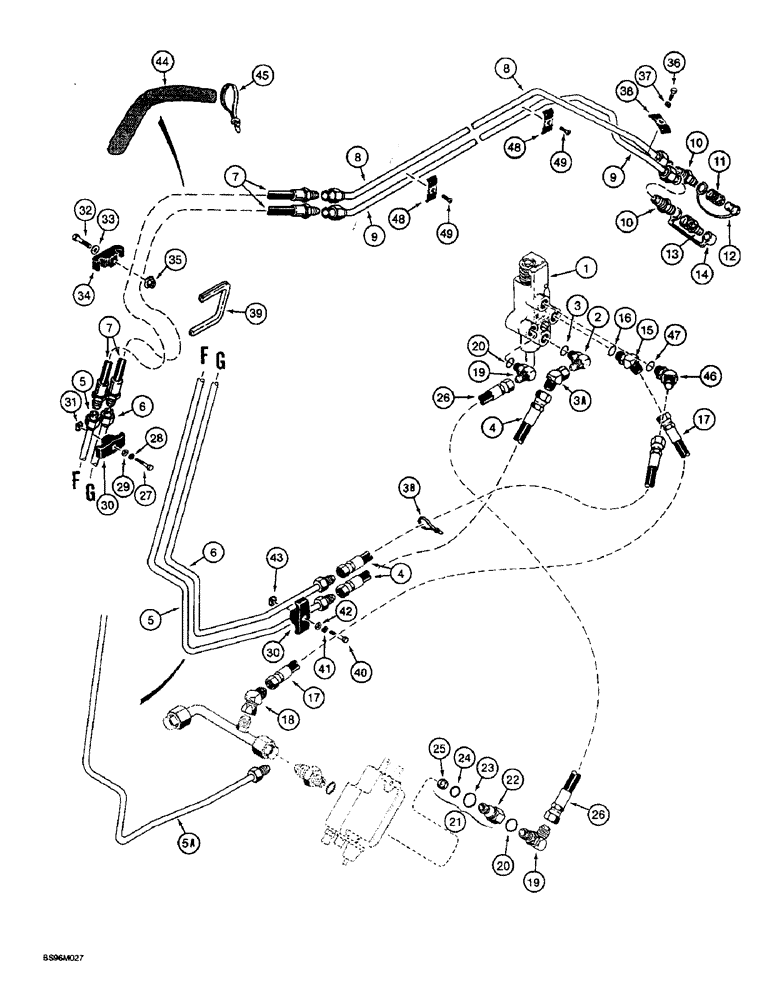

Запчасти Case IH 1825B (8-08) - HYDRAULIC CIRCUIT, AUXILIARY (08) - HYDRAULICS

1

D64670

VALVE

ASSY, control, auxiliary, see Figure 8-16

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3a

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1шт.

3b

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

1шт.

4

H674577

HOSE

812 mm, 32 in

2шт.

5

H674477

TUBE,12.7 mm OD x 577, 103 mm L

no longer available, order 245484A1

1шт.

5a

245484A1

TUBE,1 mm OD, 577, 513 mm Length

1шт.

6

H674476

TUBE,12.7 mm OD x 523, 103 mm L

1шт.

7

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

950 mm, 37-1/2 in

2шт.

8

H674481

TUBE,0.5" OD

1шт.

9

H674480

TUBE,0.5" OD

1шт.

10

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

3/4-16 fl x 3/8 in PT

2шт.

11

D60707

COUPLING, BREAK AWAY

female

1шт.

12

D62402

PLUG

1шт.

13

D60708

COUPLING, BREAK AWAY

male

1шт.

14

H437970

PLUG

CAP

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

A141008

HOSE,0.50" ID x 16.00", SAE 100R2

1шт.

18

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x Or, Incl. Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

H436154

FITTING,7/8" - 14

SLEEVE, Incl. Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

A52424

BACK-UP RING

1шт.

26

R35829

HOSE

533 mm, 21 in

1шт.

27

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

28

492-11031

LOCK WASHER,5/16"

1шт.

29

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

30

D120679

CLAMP,Tube, 1/2"

2шт.

31

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

33

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

34

D124301

CLAMP,3/4" ID

1шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

36

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16 x 1/2

1шт.

37

492-11031

LOCK WASHER,5/16"

1шт.

38

A63323

CLAMP

1шт.

39

D38500

LINING

TRIM, 9-13/16 in, 249 mm, cut from F42827

1шт.

40

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

41

492-11038

LOCK WASHER,3/8"

1шт.

42

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

43

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

44

135159A1

LOOM

SLEEVE, 27-9/16 in, 700 mm, Europe only

1шт.

45

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Europe only

2шт.

46

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 47

1шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

48

H437625

CLAMP

2шт.

49

443-1318

SCREW,Cross Flat Hd, 5/16"-18 x 1/2"

5/16 x 1/2

2шт.
