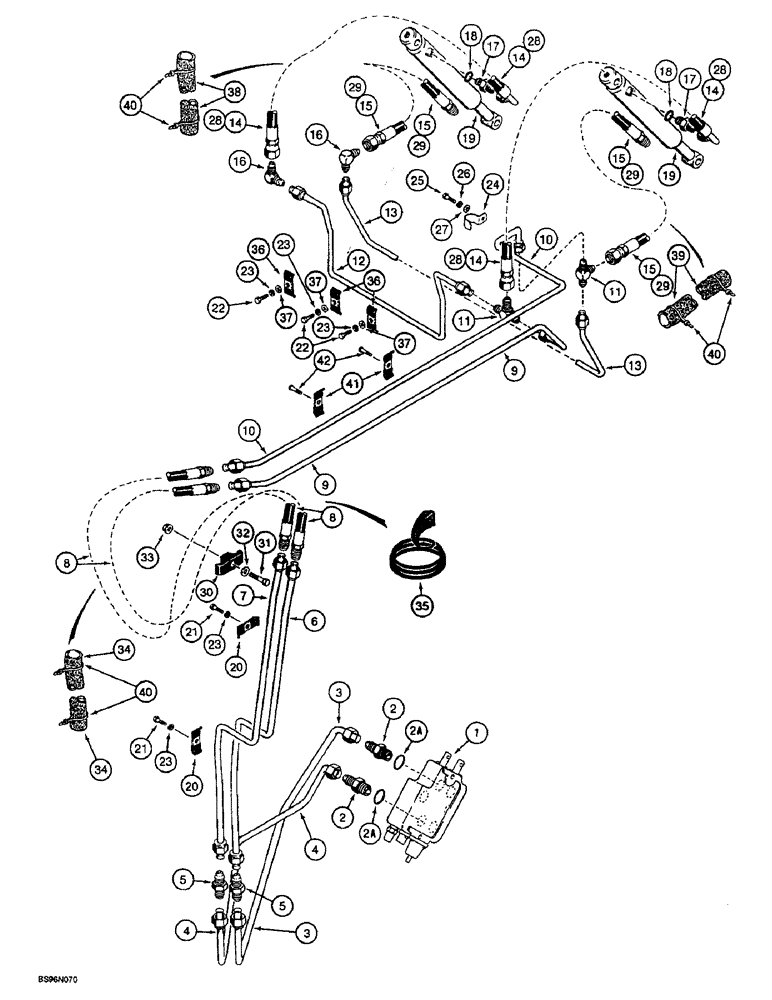

Запчасти Case IH 1825B (8-04) - HYDRAULICS CIRCUIT, LOADER BUCKET (08) - HYDRAULICS

1

H674734

VALVE

ASSY, control, loader, see Figure 8-12

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Incl. Ref 2A

2шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

227263A1

TUBE

1шт.

4

D122507

RIGID TUBE

1шт.

5

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR, 3/4-16 in flare

2шт.

6

D136940

PIPE

1шт.

7

D136938

RIGID TUBE

1шт.

8

D122103

HOSE

950 mm, 37-1/2 in

2шт.

9

D138787

PIPE

1шт.

10

D138789

PIPE

1шт.

11

218-593

TEE,9/16"-18, 37 Degree

2шт.

12

D138793

PIPE

1шт.

13

D138791

PIPE

1шт.

14

D138813

HOSE,9.53mm ID x 370mm L, SAE 100R1

370 mm, 14-3/4 in

2шт.

15

D138814

HOSE

450 mm, 17-3/4 in

2шт.

16

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

ELBOW, 9/16 fl x fl

2шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 18

2шт.

19

104517A1

CYLINDER ASSY.

see Figure 8-20

2шт.

20

R17319

CLAMP

2шт.

21

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

3шт.

23

492-11031

LOCK WASHER,5/16"

5шт.

24

D140709

CLAMP

1шт.

25

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

28

E20148

FLEXIBLE HOSE

370 mm, 14-5/8 in, German T.B.G. models

2шт.

29

E20149

HOSE

450 mm, 17-3/4 in, German T.B.G. models

2шт.

30

D124301

CLAMP,3/4" ID

1шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

34

135159A1

LOOM

SLEEVE, 27-9/16 in, 700 mm, Europe only

1шт.

35

D38500

LINING

TRIM, 9-13/16 in, 249 mm, cut from F42827

1шт.

36

H45468

CLAMP

3шт.

37

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

38

128775A1

LOOM

SLEEVE, 15-3/8 in, 390 mm, Europe only

2шт.

39

135157A1

TUBE

SLEEVE, 11-7/16 in, 290 mm, Europe only

2шт.

40

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Europe only

10шт.

41

H437625

CLAMP

2шт.

42

443-1318

SCREW,Cross Flat Hd, 5/16"-18 x 1/2"

5/16 x 1/2

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
