(8-02) - HYDRAULIC CIRCUIT, LOADER LIFT

Запчасти Case IH 1825B (8-02) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS

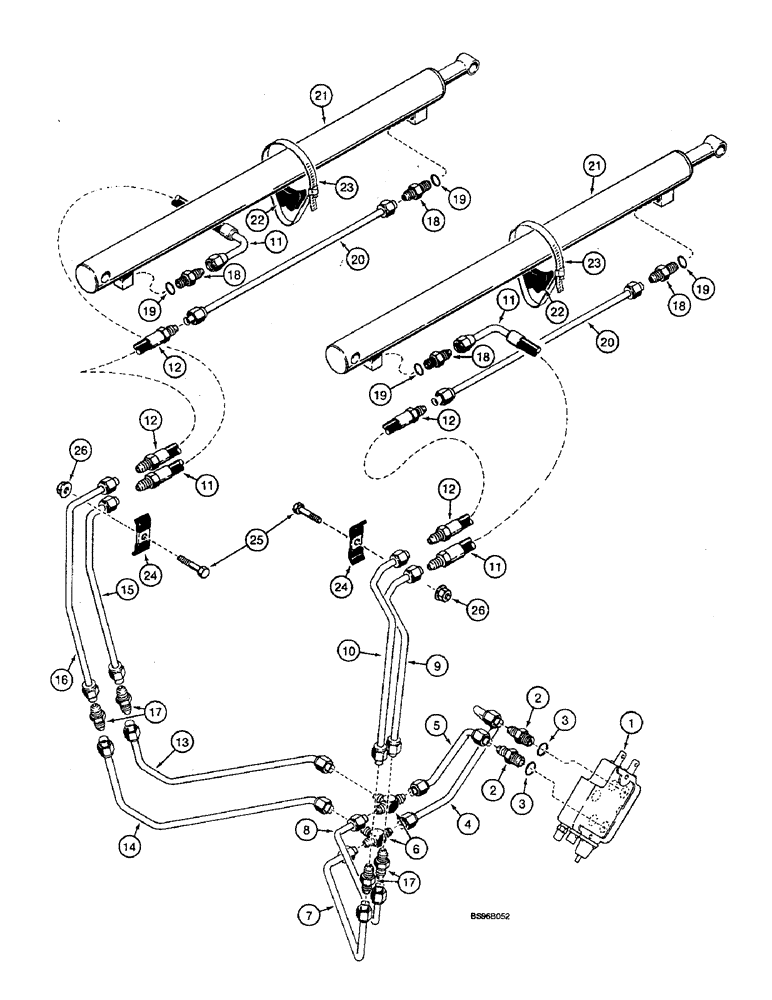

Схема запчастей Case IH 1825B - (8-02) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS
20
21
17
23
16
10
12
21
15
19
5
18
18
22
22
19
6
1
24
24
14
3
7
11
20
2
19
19
12
3
18
12
17
11
9
18
12
13
8
4
11
11
25
2
23
26
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H674734

VALVE

ASSY, control, loader, see Figure 8-12

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

D122513

TUBE

1шт.

5

D122511

TUBE

1шт.

6

218-594

TEE,3/4"-16, 37 Degree

2шт.

7

D122519

TUBE

1шт.

8

D122521

TUBE

1шт.

9

D136942

TUBE

1шт.

10

D136946

TUBE

1шт.

11

D139490

HOSE

340 mm, 13-1/2 in

2шт.

12

E99973

HOSE

450 mm, 17-3/4 in

2шт.

13

D122515

TUBE

1шт.

14

D122517

TUBE

1шт.

15

D136944

TUBE

1шт.

16

D136948

TUBE

1шт.

17

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR, 3/4-16 in flare

4шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 19

4шт.

20

E20104

HYD TUBE,19.53 mm OD x 535 mm L

2шт.

21

104516A1

CYLINDER ASSY.

see Figure 8-18

2шт.

22

D38648

BLOCK

SPACER

2шт.

23

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

24

R17319

CLAMP

3шт.

25

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

3шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
