Запчасти Case IH 1825B (6-40) - FILTER ASSEMBLY, HYDRAULICS OIL (06) - POWER TRAIN

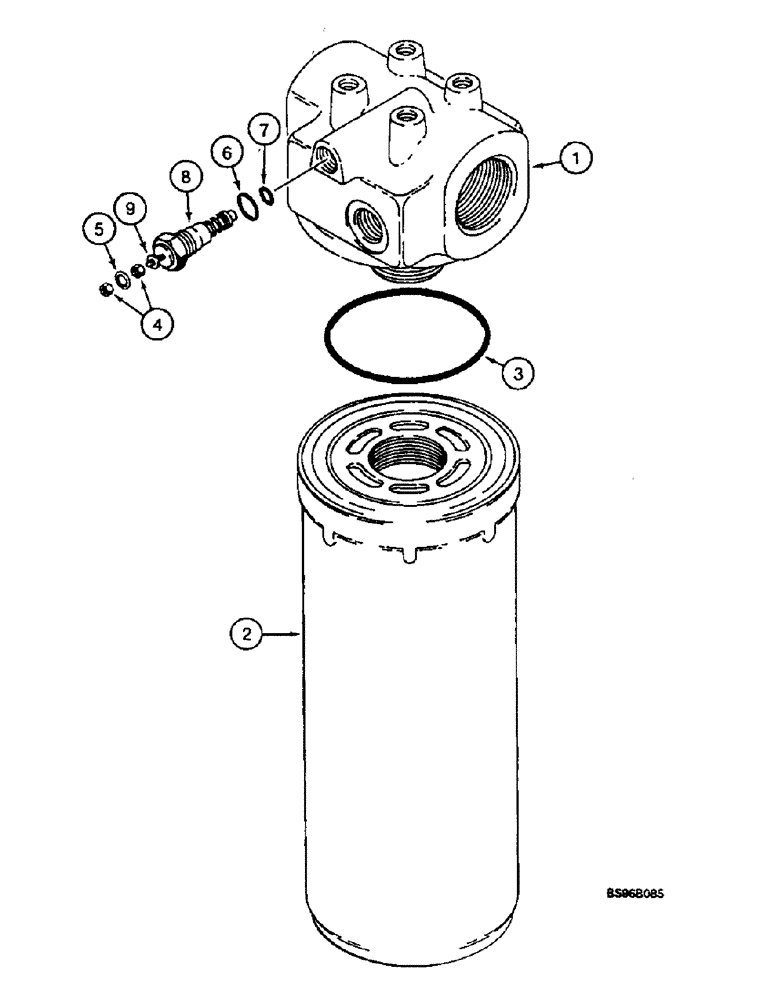

Схема запчастей Case IH 1825B - (6-40) - FILTER ASSEMBLY, HYDRAULICS OIL (06) - POWER TRAIN
7
2
6
1
8
3
5
4
9

Артикул

Название

Примечание

Количество

D121629

FILTER, ENGINE OIL

FILTER, OIL ASSY, Incl. Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD

1шт.

D122562

FILTER, ELEMENT

ELEMENT, FILTER ASSY, Incl. Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

3

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

N13268

PRESSURE SWITCH

ASSY, Incl. Ref. 4 - 9

1шт.

4

129-667

NUT,#10-32, LH

2шт.

5

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

7

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

INDICATOR

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
