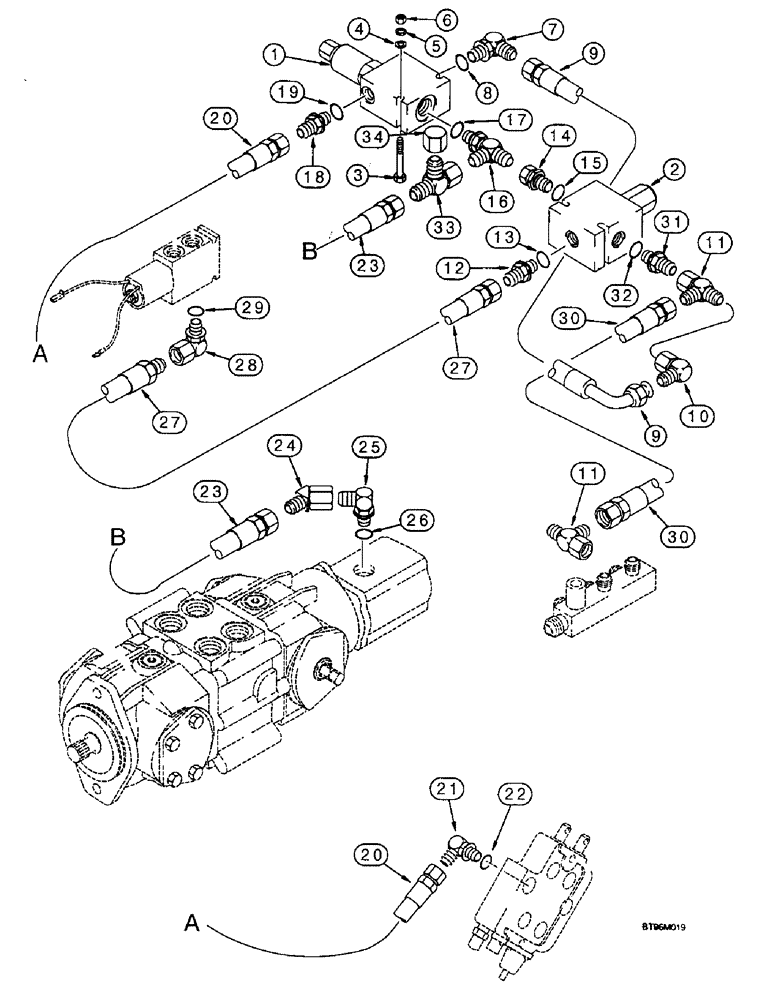

Запчасти Case IH 1825B (6-20) - HYDROSTATIC CIRCUIT, PRESSURE VALVES, EUROPE (06) - POWER TRAIN

1

230671A1

VALVE

ASSY, pressure sensing, see Figure 6-38

1шт.

2

226941A1

VALVE

ASSY, pessure reducing, see Figure 6-38

1шт.

3

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

1/4 x 2-3/4

2шт.

4

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

2шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 8

1шт.

9

139534A1

HOSE

350 mm, 13-7/8 in

1шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

11

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER, Incl. Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

1327736C1

ELBOW

ADAPTER, 3/4 fl x 3/4 Oring, Incl. Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Incl. Ref 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

228351A1

HOSE

1270 mm, 50 in

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x Or, Incl. Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

223624A1

HOSE

1486 mm, 58-5/8 in

1шт.

24

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

ELBOW, 1-1/16-12 in fl x sw, 45°

1шт.

25

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

long, 90°, Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

228353A1

HOSE

1245 mm, 49 in

1шт.

28

D45275

ELBOW UNION

Union Elbow 90°, Incl. Ref. 29

1шт.

30

228352A1

HOSE

190 mm, 7-1/2 in

1шт.

31

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

34

218-755

CAP,37 Degree, 3/4"-16

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
