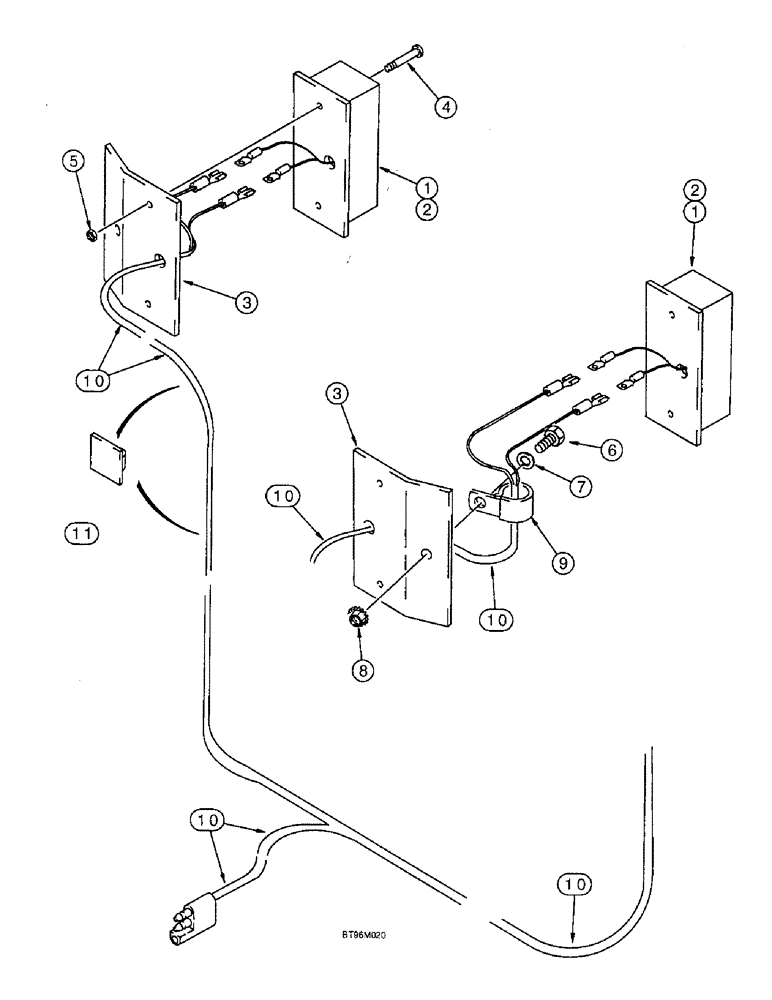

Запчасти Case IH 1825B (4-35A) - LAMPS, FRONT SIDE, ITALIAN D.G.M. MODELS (04) - ELECTRICAL SYSTEMS

1

189124A1

LIGHT ASSY.

front, side, Incl. Ref. 2

2шт.

2

259192A1

BULB

1шт.

3

189406A1

SUPPORT

2шт.

4

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

4шт.

5

193-1003

NUT,Keps, w/LW,#6-32

4шт.

6

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

7

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

2шт.

10

141423A1

HARNESS

side lamp

1шт.

11

H439303

CLIP

13шт.
