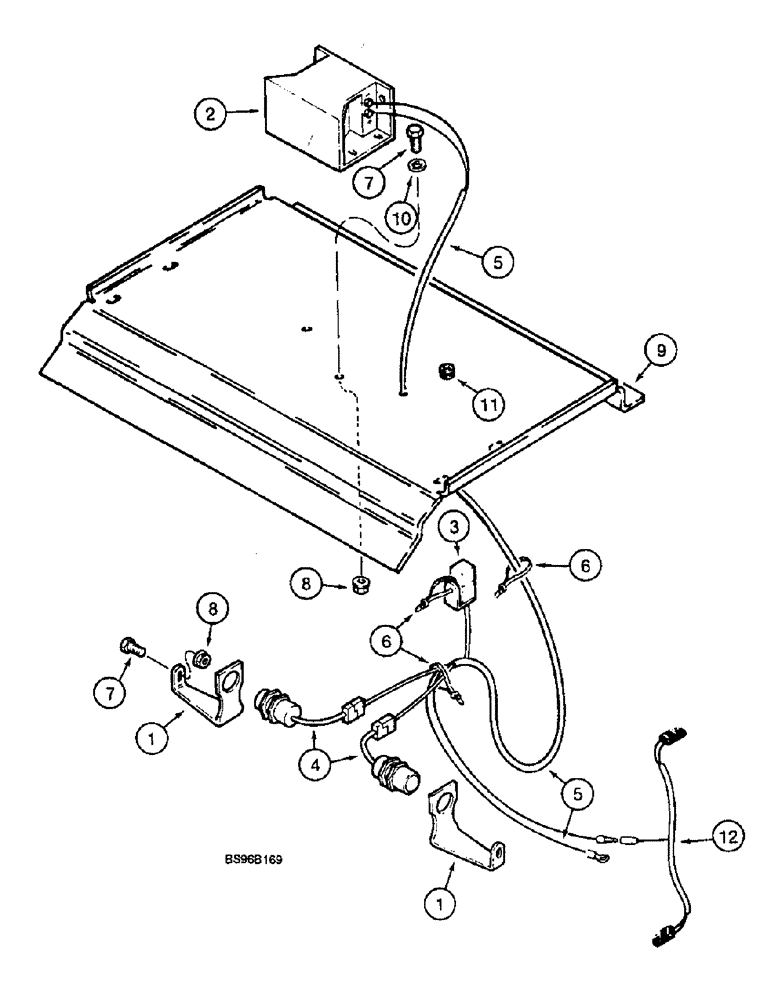

Запчасти Case IH 1825B (4-28) - AUDIBLE WARNING ALARM (04) - ELECTRICAL SYSTEMS

1

E20400

SUPPORT

2шт.

2

D121972

ALARM

1шт.

For new style alarm, use 283178A3. This can be seen in 85XT, 90XT and 95XT books.

1шт.

3

D128310

RELAY

1шт.

Relay is marked 40 amp on the relay. This is the resistance rating. The inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

4

D136898

SWITCH

2шт.

5

H438140

HARNESS

audible warning alarm

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

3шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

H437295

HOOD ASSY.

COVER

1шт.

10

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

11

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

12

H438141

HARNESS

power

1шт.
