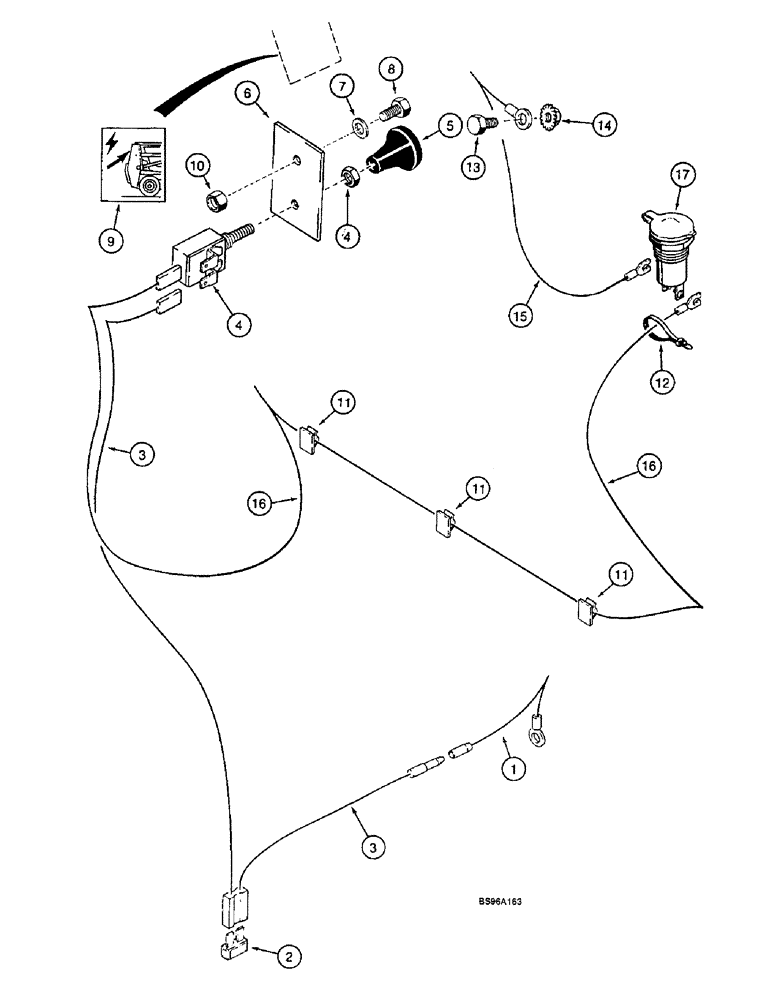

Запчасти Case IH 1825B (4-22) - HARNESS, ACCESSORY, EUROPE (04) - ELECTRICAL SYSTEMS

1

103938A1

ELECTRICAL WIRE

WIRE

1шт.

2

A149800

FUSE,10 Amp

10 ampere

1шт.

3

102331A1

ELECTRICAL WIRE

WIRE

1шт.

4

D74330

SWITCH

with nut

1шт.

5

178112A1

BUTTON

KNOB

1шт.

6

103892A1

LARGE PLATE

PLATE, LARGE

1шт.

7

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

142279A1

DECAL

auxiliary power

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

11

H439303

CLIP

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

1шт.

13

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

14

193-1009

NUT,Keps, w/LW, 5/16"-18

with lock washer

1шт.

15

142209A1

ELECTRICAL WIRE

WIRE

1шт.

16

142210A1

ELECTRICAL WIRE

WIRE

1шт.

17

142211A1

SOCKET

OUTLET

1шт.
