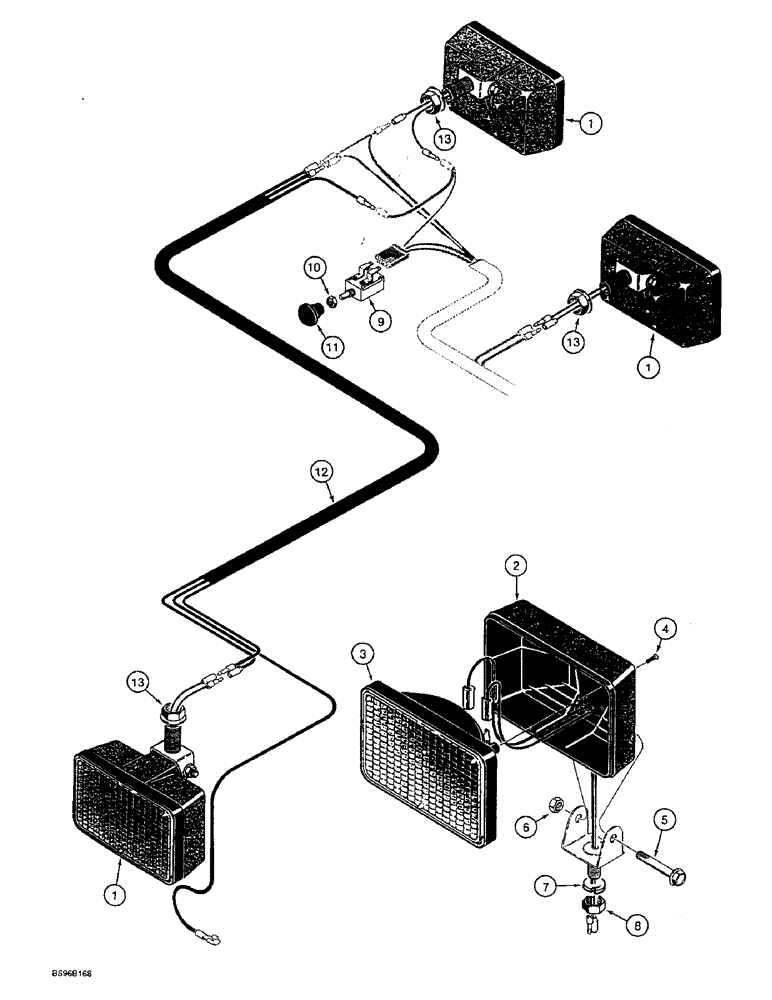

Запчасти Case IH 1825B (4-20) - WORK LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

H672846

INTERIOR LIGHT

LAMP ASSY, Incl. Ref. 2 - 8

3шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

N14646

INTERIOR LIGHT

LAMP

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

231-1445

NUT,5/16"-18, GB

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

1шт.

9

D74330

SWITCH

lamp, Incl. Ref. 10

1шт.

10

N7557

NUT

1шт.

11

108314A1

BUTTON

1шт.

12

D134075

HARNESS

lamp

1шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.
