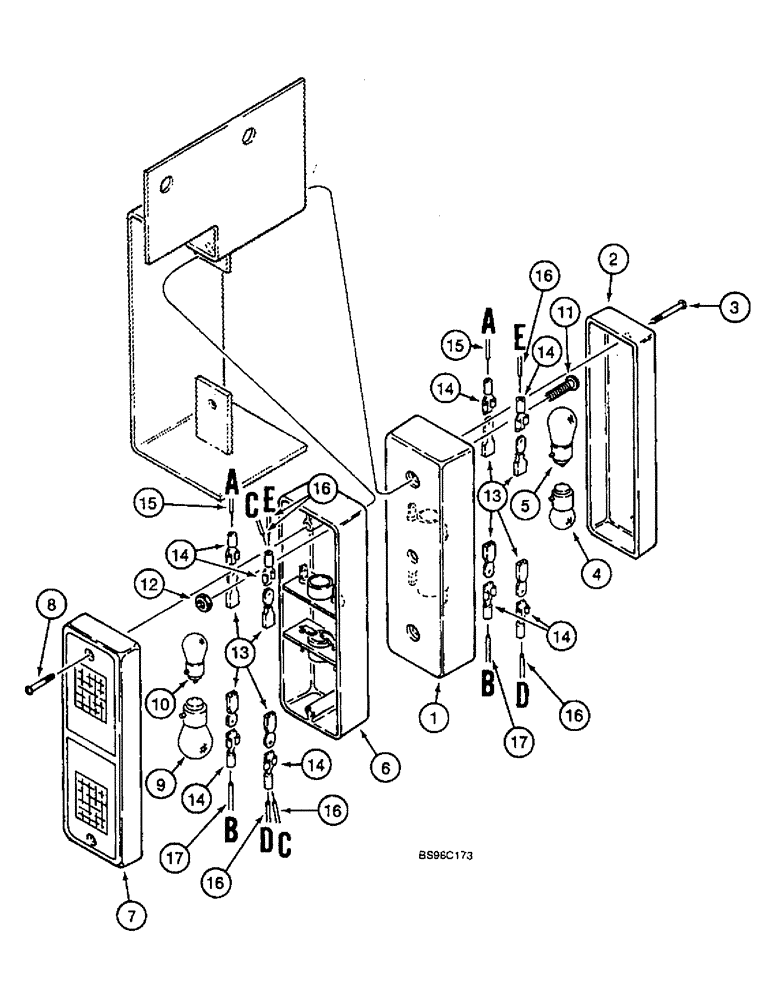

Запчасти Case IH 1825B (4-16) - ROAD LAMP ASSEMBLIES, EUROPE (04) - ELECTRICAL SYSTEMS

E137163

LIGHT ASSY.

LAMP, front, Incl. Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

110280A1

CAPPING

amber-white

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW

2шт.

4

110279A1

BULB

5 watt

1шт.

5

110277A1

BULB

21 watt

1шт.

E137174

LENS

LAMP, rear, Incl. Ref. 6 - 10

2шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

110276A1

REFLECTOR

amber-red

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW

2шт.

9

110278A1

BULB

21/5 watt

1шт.

10

110277A1

BULB

21 watt

1шт.

11

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

4шт.

12

825-1405

NUT,M5, Cl 8

4шт.

13

102296A1

CONNECTION

10шт.

14

223-95

TERMINAL CONNECTOR,Female, 14 - 16

8шт.

15

H439273

ELECTRICAL WIRE

WIRE red

2шт.

16

H439272

ELECTRICAL WIRE

WIRE black

6шт.

17

H439274

ELECTRICAL WIRE

WIRE green

2шт.
